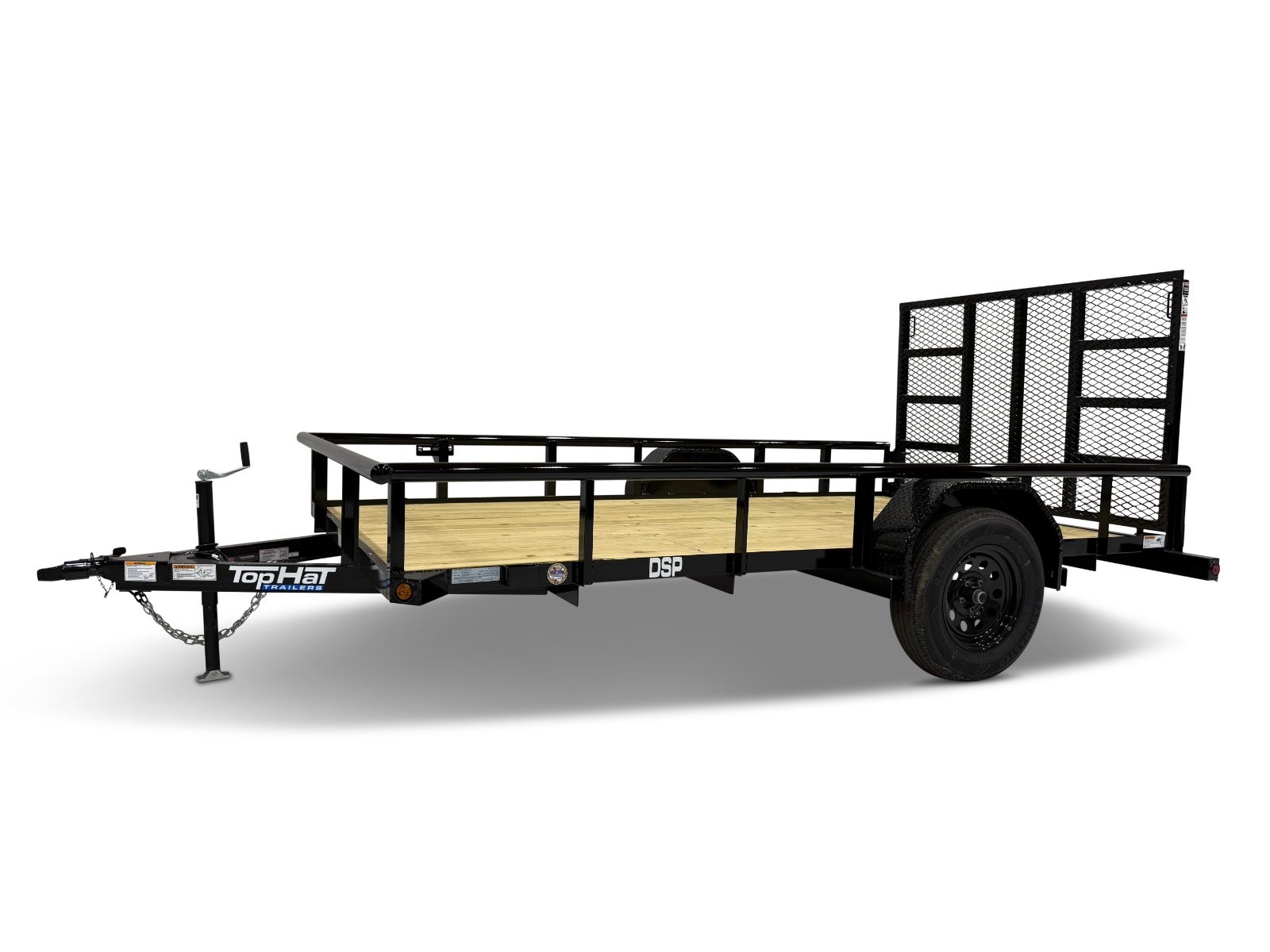

DERBY SR PIPE

Single Axle / ATV-UTV

Request More Info

Model

Axle Description

Tire Size

GAWR

GVWR

DERBY SR PIPE

8x60" DSP

3500# Dexter

ST205/15 LRC Radial

2990#

2990#

10x60" DSP

EZ Lube - 1/2 Cambered

12x60" DSP

14x60" DSP

10x77" DSP

12x77" DSP

14x77" DSP

10x83" DSP

12x83" DSP

14x83" DSP

Standard Equipment

ST205/75R/15R LRC Tires
3500# Dexter EZ-Lube Idler Axle
2" Forged A-Frame Coupler
2000# Set Back Jack
9x32 Rolled Fenders
Treated Pine Floor
Stake Pockets
Spare Rack
Flush Mount Sealed LED Lights in Rear Tailboard
4' Lay-N-Tailgate w/Coil Spring Assist
Color: Stock

Frame Structure

Frame: 3x2x3/16
Toprail: 2 3/8" Pipe
Crossmembers: 3x2x3/16
Tongue: 3" Channel Thru 10'
Tongue: 4" Channel on 12'-14'
Uprights: 2x2x1/8
TG Uprights: 2" Sq Tube 14GA
TG Horizontal Rungs: 3 Each Side 77-83 Only

Options

SA 3500# Electric Brake w/Break Away Kit
Fold Up Jack
Spare ST205/75R/15 LRC on 5-Hole
Wrap Tongue
HD Diamond Plate Fender (Double Broke)

Slide-N-Ramps

4' Slide-n-Ramps ILO Tailgate (Available on 77"-83" wide only)

Tailgate Options

Sidegate 48" Tall x 50" Wide (No Spring Assist). (NA on 8-10') Requires Wrap Tongue

Diamond Plate Dovetail w/Tailgate

2' TG w/2' Dove w/Coil Spring Assist ILO 4' Lay-N TG
3' TG w/2' Dove w/Coil Spring Assist ILO 4' Lay-N TG
Delete TG 60"
Delete TG 77-83"
