Low Profile Gooseneck Dump 20K

Trailers - Hydraulic Dump

Print

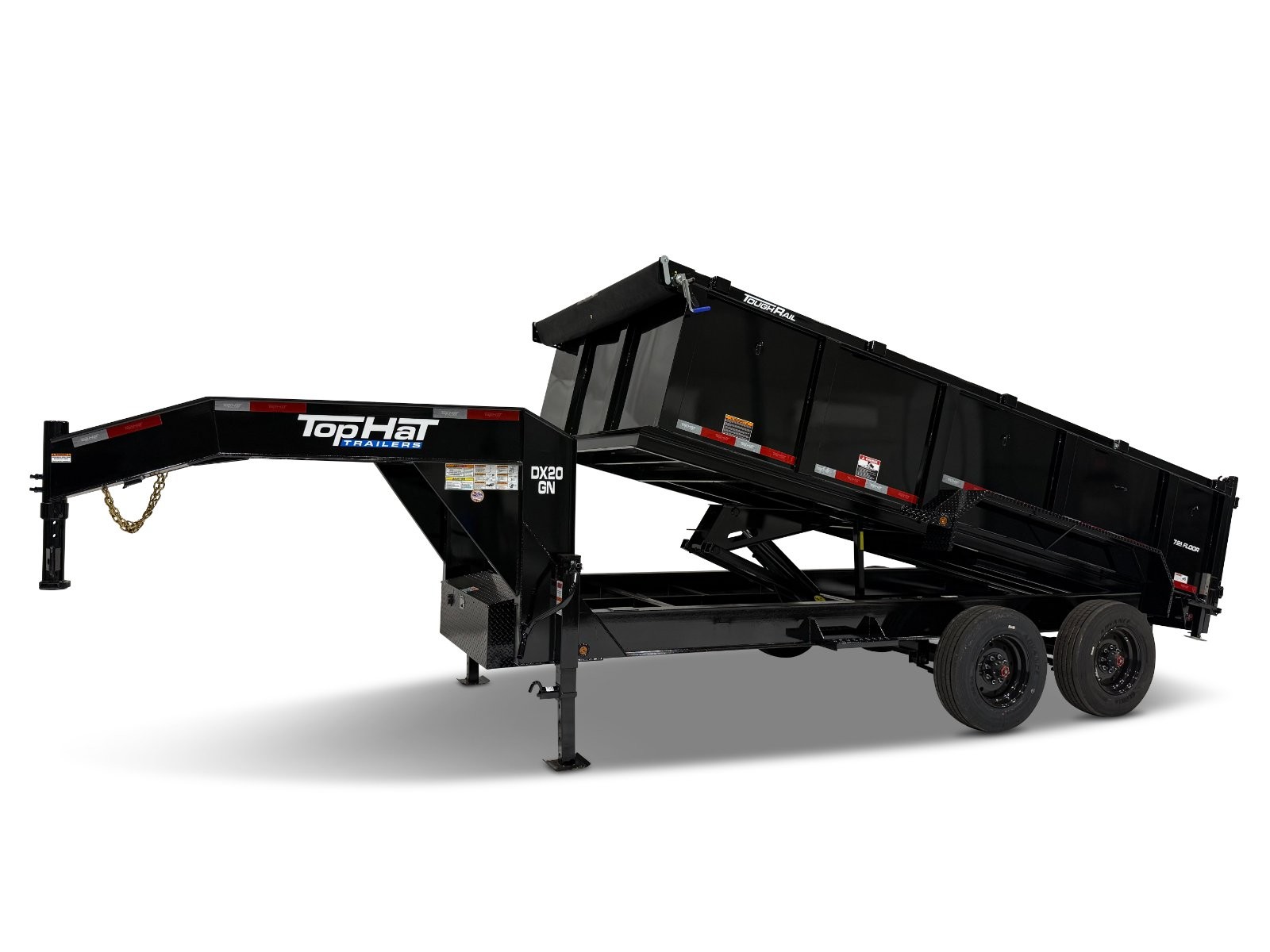

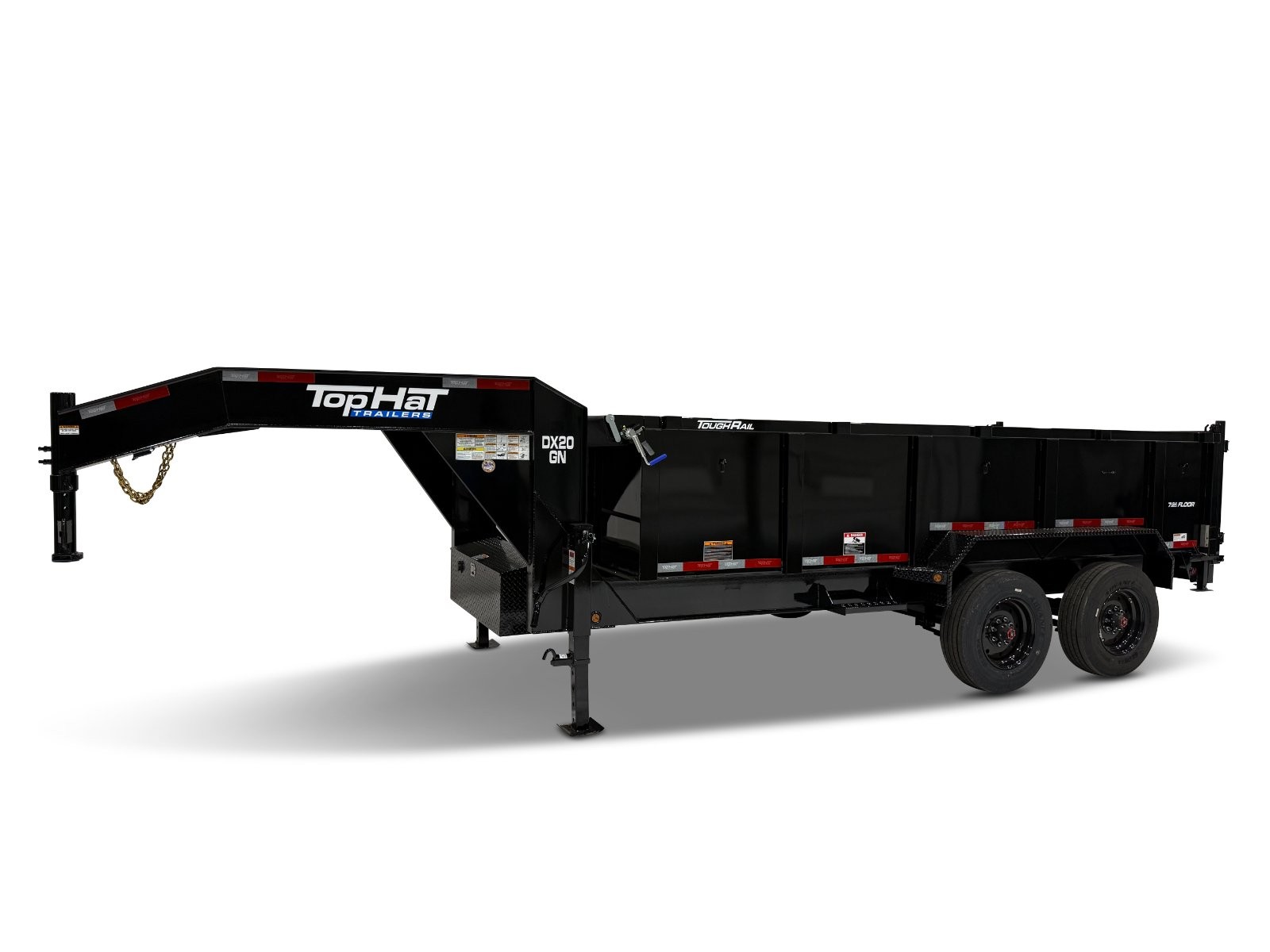

Low Profile Gooseneck Dump 20K

Hydraulic Dump

Request More Info

Model

Axle Description

Tire Size

GAWR

GVWR

LOW PROFILE GOOSENECK DUMP 20K

16x83" DX20GN

10000#

20000#

Standard Equipment

ST235/75R/17.5 LRJ Tires on Single Wheel
2-10000# Dexter Oil Bath Axles w/Electric Brakes
5 Leaf Slipper Spring Suspension
2 5/16" Round Adjustable Coupler
Dual 10000# Drop Leg Jacks
HD 3/16" Diamond Plate Fenders (Double Broke)
Width: 83" Inside Box
Break Away Unit w/Charger
DOT Reflective Tape
Primed & Painted Underside
Dual Action Swing Out Doors/1 Piece Spreader Gate
Slide-N Ramp 6' Channel
5/8" D-Rings in Box (4)
Spare Rack
Sealed Flush Mount LED Lights
Side Step (Driver Side)
Wiring Harness
Lockable Battery/Pump Box
Crank Style Roll Tarp & Tie Downs
Rear Stabalizer Stands
Color: Black

Options

DX Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
Ground Level Crank Kit For Spring Loaded Long Arm Retractable Tarp (3-4' Sides Only)
Motorized Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
Gas Engine Powered Pump in Lieu of Electric Pump
Spare ST235/75R/17.5 LRJ Tires on Single Wheel
Dual Hydraulic 12K Jack Replacing Dual 12K Jack
Solar Battery Charger
Jumbo Step (40" Replaces 18" Side Step)

Frame Structure

Frame: 10"x19# I-Beam
Neck & Risers: 12" I-Beam
Sides: 24" Tall 10 GA Sheet Metal w/Toprail
Floor: 7 GA Sheet Metal
Toprail: Rigid 3x2x7GA Rectangular Tubing
Uprights: Formed Channel
Dump Body Frame: 6" Channel
Crossmembers: 3" Channel 16" OC

Dump Components

620 Scissor Hoist
Power Up/Power Down/Gravity Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Deep Cycle 12V Marine Battery
110 Volt-5 Amp Charger

High Sides

3' Tall Sheet Metal Sides
4' Tall Sheet Metal Sides
