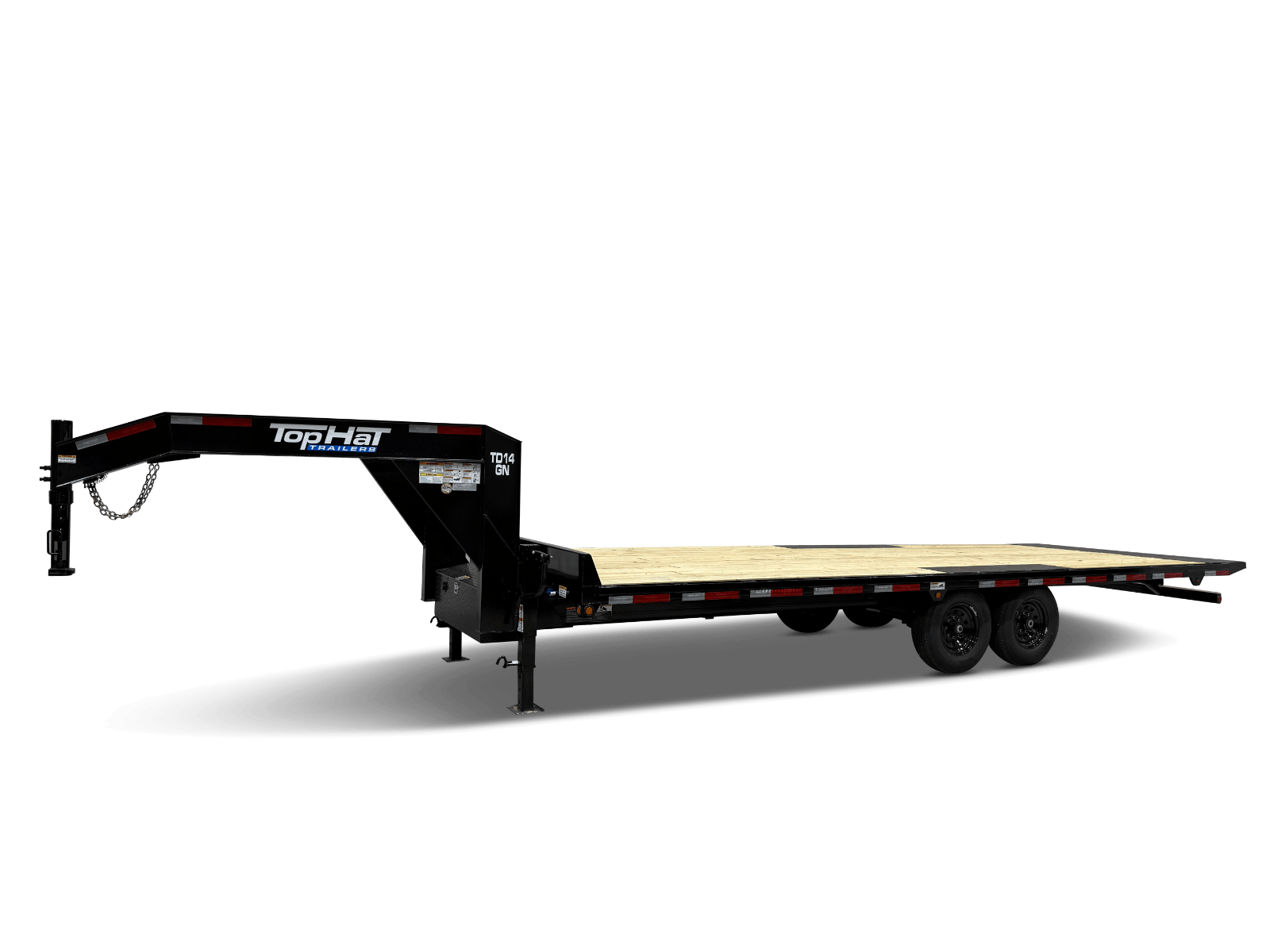

Tilt Deck Over Gooseneck 14K-16K

Trailers - Equipment / Tilt

Print

Tilt Deck Over Gooseneck 14K-16K

Equipment / Tilt

Request More Info

Model

Axle Description

Tire Size

GAWR

GVWR

TILT DECK OVER GOOSENECK 14K

20x102" TD14GN

7000#

14000#

22x102" TD14GN

24x102" TD14GN

TILT DECK OVER GOOSENECK 16K

20x102" TD16GN

8000#

17500#

22x102" TD16GN

24x102" TD16GN

Standard Equipment

ST235/80R/16 LRE Tires on 8-Hole on 14K
7000# Dexter EZ-Lube 1/2 Cambered Elec.Brake Axles 14K
ST215/75R/17.5 LRH on 8-Hole on 16K
8000# Dexter Oil Bath 1/2 Cambered Elec.Brake Axles 16K
2 5/16" Round Adjustable Coupler
Dual 10000# Drop Leg Jacks
Treated Pine Floor
Break Away Unit w/Charger
Spare Rack
Sealed Flush Mount LED Lights
Winch Plate
Inverted Treadplate Dovetail
Collapsible Bumper
Color: Black

Options

Spare ST235/80R/16 LRE on 8-Hole
Spare ST215/75R/17.5 LRH on 8-Hole Black Mod
Dual Hydraulic 12K Jack Replacing Dual 12K Jack
Additional Weld-on D-Rings 5/8"

Frame Structure

Frame 8" x10# I-Beam
Neck & Risers: 10"x12# I-Beam on GN
Deck Frame: 5" Channel
Crossmembers: 3" Channel 16" OC
Side Rails: 5" Channel
Stake Pockets
3/8x2 Rubrail

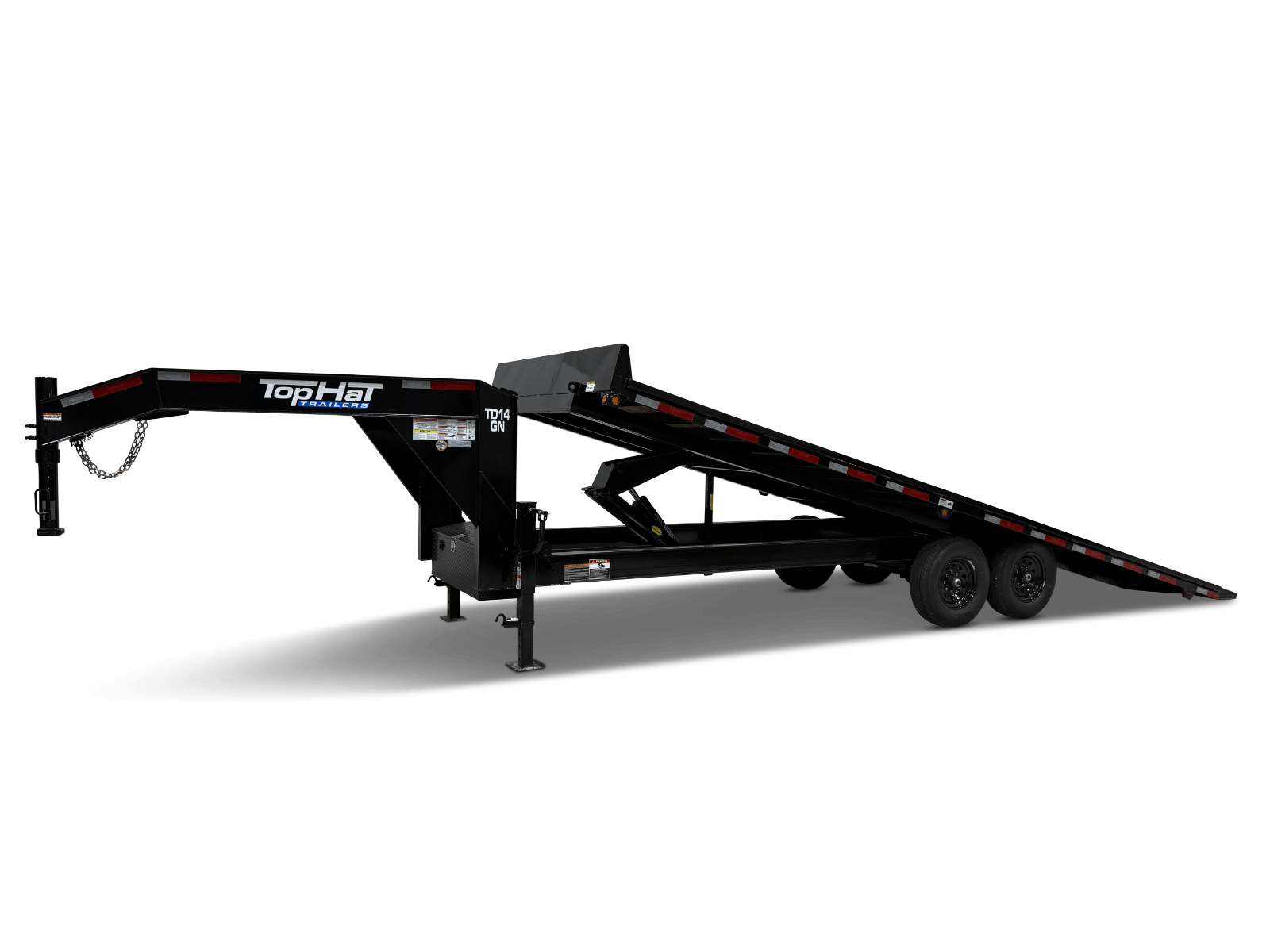

Hoist Components

Hoist: Scissor Lift
Power Up/Power Down
Control: Pistol Grip w/10' Cord
Safety Prop
Deep Cycle 12V Marine Battery
110 Volt-5 Amp Charger
