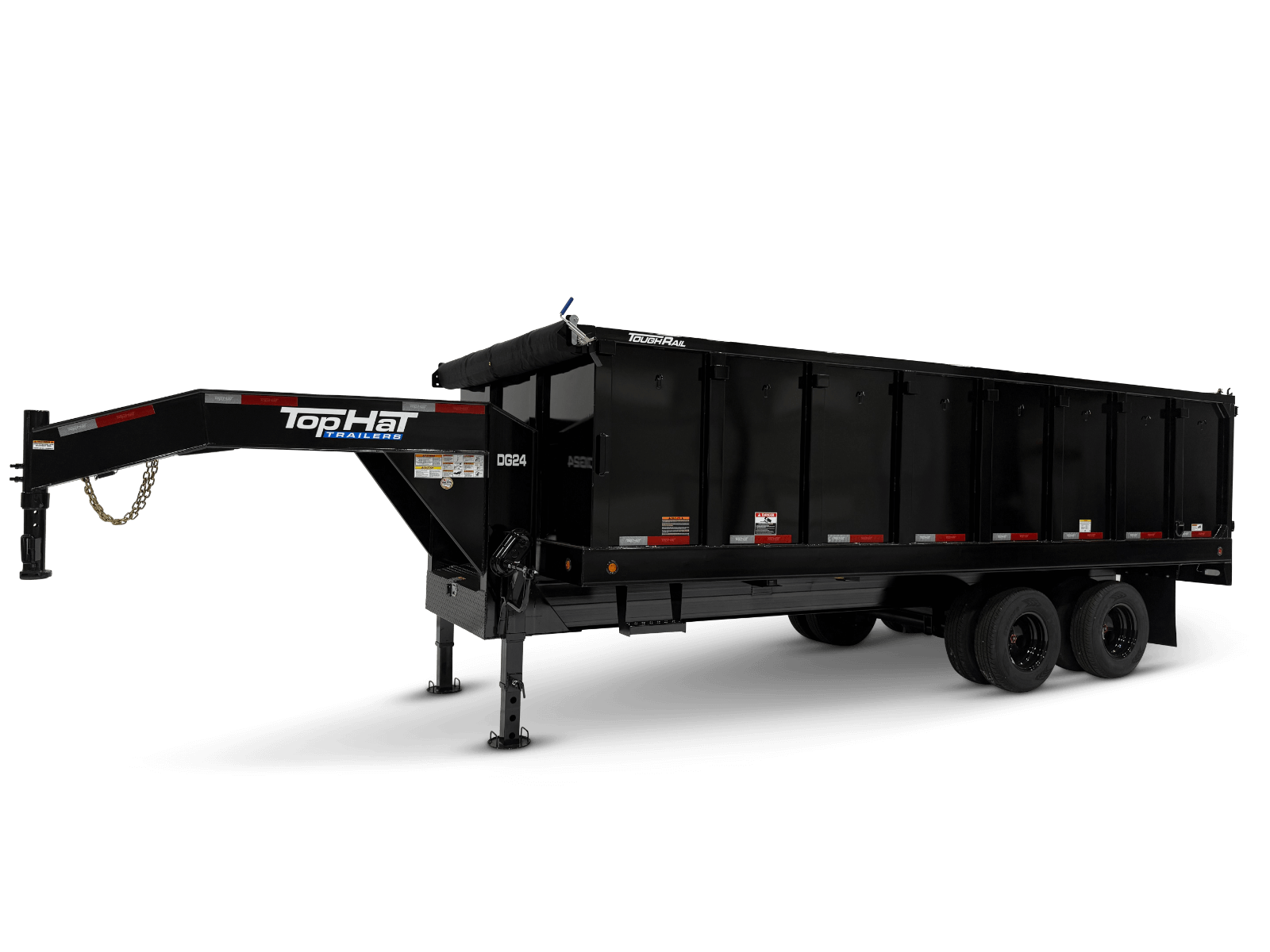

TANDEM DUAL GOOSENECK DUMP 24K

Trailers - Hydraulic Dump

Print

TANDEM DUAL GOOSENECK DUMP 24K

Hydraulic Dump

Request More Info

Model

Axle Description

Tire Size

GAWR

GVWR

GOOSENECK DUMP 240

16x96" DG24

2 - 10000# Dexter

ST235/80R/16 LRE

10000#

24000#

20x96" DG24

2 - Electric Brakes Nev-R-Adjust

Standard Equipment

ST235/80R/16 LRE Tires on 8-Hole Dual
2-10000# Dexter Axles w/Electric Brakes
Oil Bath Hubs
5 Leaf Slipper Spring Suspension
2 5/16" Round Adjustable Coupler
Width: 91.5" Inside Box
Break Away Unit w/Charger
DOT Reflective Tape
Primed & Painted Underside
Dual Swing Out Doors
Ramp Pockets w/ 7 1/2' Ramps
5/8" D-Rings in Box (4)
Spare Rack (Spare Tire Optional)
Sealed Flush Mount LED Lights
Wiring Harness
Lockable Battery/Pump Box
Crank Style Roll Tarp & Tie Downs
Color: Black

Frame Structure

Frame: 12"x19# I-Beam
Neck: 12"x16# I-Beam
Sides: 48" Tall 12 GA Sheet Metal
Floor: 7 GA Sheet Metal
Uprights: 24" OC
Toprail: Rigid 3x2 Rectangular Tubing
Dump Body Frame: 8" Channel
Crossmembers: 3" Channel 16" OC

Options

DG Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp (w/Ground Level Crank Kit)
Motorized Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
3" ID Adjustable Pintle Ring ILO Gooseneck (Code:DP24)
Dual 2-Speed Jacks
Dual Hydraulic 12K Jack Replacing Dual 12K Jack
9"x18" Grain Gate
Spare ST235/80R/16 LRE on Dually
Gas Engine Powered Pump in Lieu of Electric Pump
12K Axles w/HDSS ILO 10K Axles (Rating Stays 24000 GVWR)
Solar Battery Charger
Super Singles (Converts to /235/75R/17.5 LRJ Single Tire) Code:DG24SS OR DP24SS
2' Tall Sheet Metal Sides

Dump Components

620 Scissor Hoist on 16'
630 Scissor Hoist on 20'
Power Up/Power Down/Gravity Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Dual Deep Cycle 12V Marine Batteries
110V-5 Amp Charger
