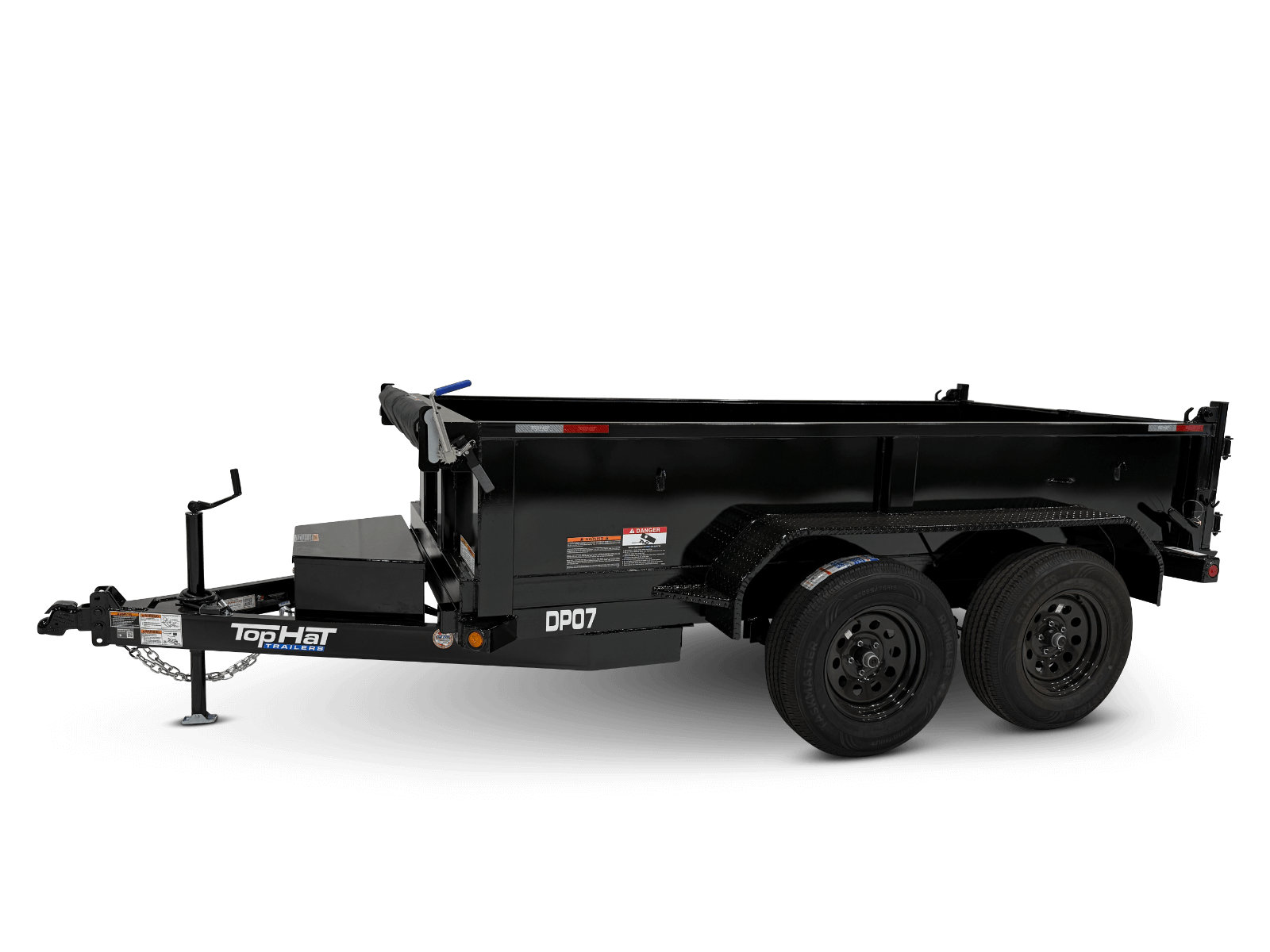

TANDEM AXLE MINI DUMP 7K

Trailers - Hydraulic Dump

Print

TANDEM AXLE MINI DUMP 7K

Hydraulic Dump

Request More Info

Model

Axle Description

Tire Size

GAWR

GVWR

DUMP 70 (Tandem Axle)

10x60" DP07

2 - 3500# Dexter

ST225/75R/15 LRD

3500#

7000#

10x77" DP07

2 - 3500# Dexter

ST225/75R/15 LRD

Standard Equipment

ST 225/75R/15 LRE Tires on 5-Hole
3500# Dexter EZ-Lube 1/2 Cambered Axles
Electric Brake on 2-Axles
2" DEMCO Easy Latch Adjustable 5/Position Coupler
2000# Jack
HD Diamond Plate Fender (Double Broke)
Width: 60" Inside Box on 5x10. 77" on 6.5x10
Break Away Unit w/Charger
Primed & Painted Underside
Dual Action Swing Out Doors/1 Piece Spreader Gate
Spare Rack
Sealed Flush Mount LED Lights
Wiring Harness
Lockable Battery/Pump Box
Crank Style Roll Tarp & Tie Downs
Color: Black

Frame Structure

Frame: 5" Channel
Sides: 20" Formed
Floor: Sheet Metal
Tongue: 5" Channel Wrap
Dump Body Frame: 4" Channel
Crossmembers: 3" Channel 24" OC

Options

5/8" D-Rings Inside Box (Per Ring)
Spare ST225/75R/15 LRE on 5-Hole
Solar Battery Charger

Dump Components

3"x24" Cylinder Direct Push Hoist
Power Up/Power Down/Gravity Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Deep Cycle 12V Marine Battery
110 Volt-5 Amp Charger
