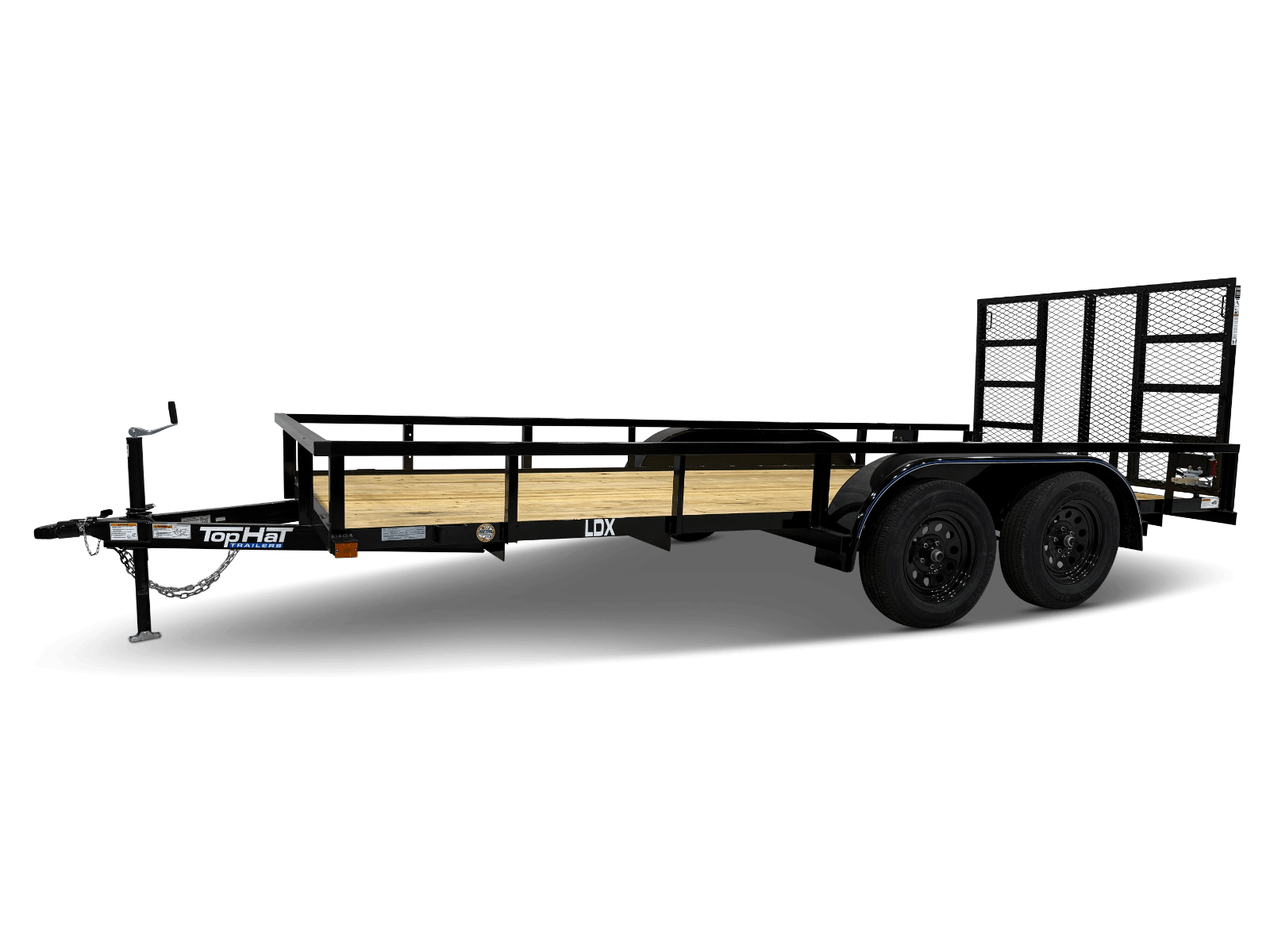

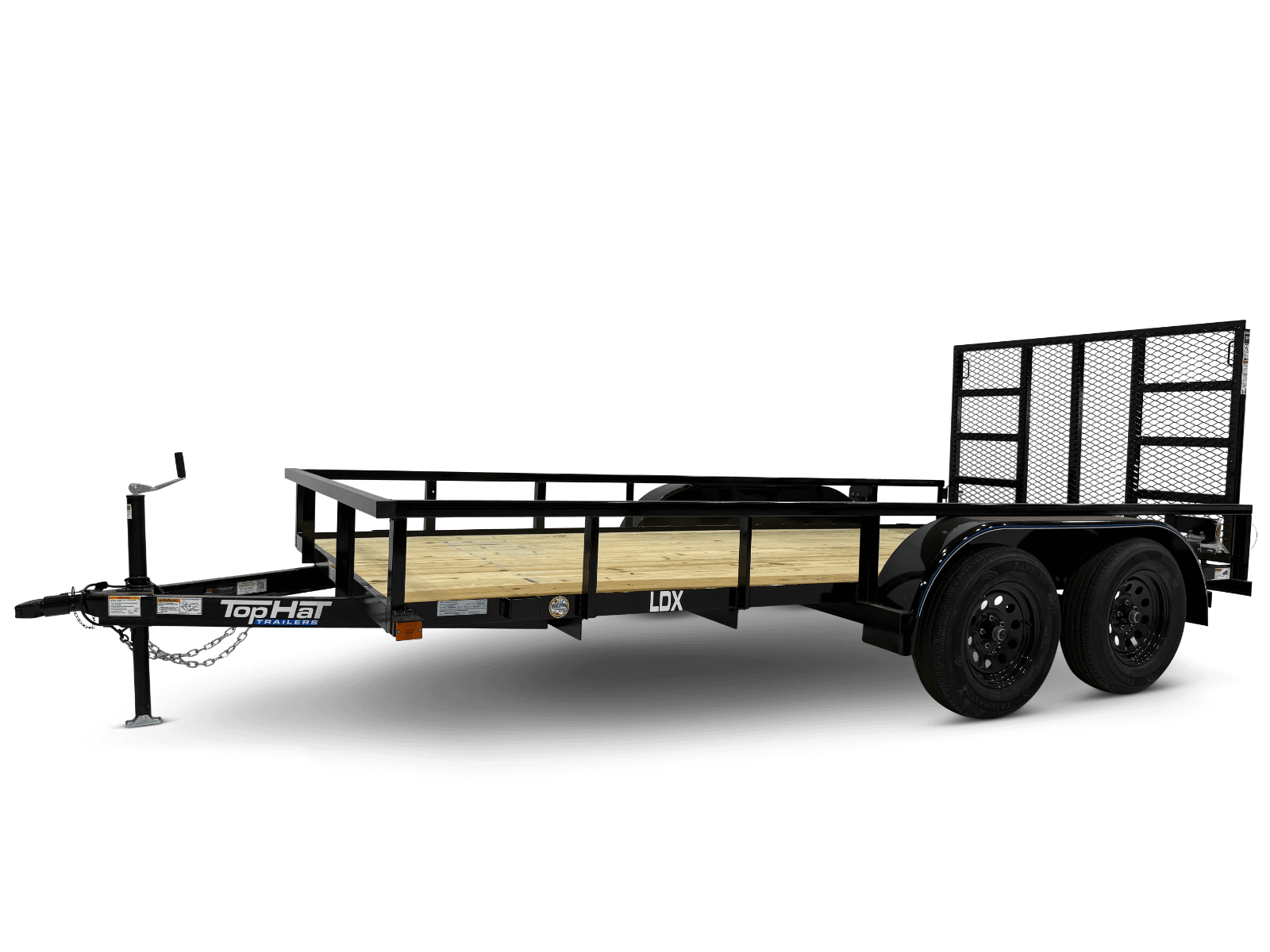

LITE DUTY UTILITY

Trailers - Tandem Axle / H.D. Utility

Print

LITE DUTY UTILITY

Tandem Axle / H.D. Utility

Request More Info

Model

Axle Description

Tire Size

GAWR

GVWR

LITE DUTY UTILITY

12x77" LDX (No Brakes)

2 - 3500# Dexter

ST205/15 LRC Radial

2950#

4490#

14x77" LDX (No Brakes)

*No Brakes

16x77" LDX (No Brakes)

EZ Lube - 1/2 Cambered

12x77" LDT (w/Brakes)

2 - 3500# Dexter

ST205/15 LRC Radial

3500#

5000#

14x77" LDT (w/Brakes)

1 - Electric Brake Nev-R-Adjust

16x77" LDT (w/Brakes)

EZ Lube - 1/2 Cambered

Standard Equipment

ST205/75R/15R LRC Tires
2-3500# Dexter EZ-Lube 1/2 Cambered Axles (LDT w/1-Electric)
2" Forged A-Frame Coupler
2000# Jack
9x72 Rolled Fenders
Treated Pine Floor
Stake Pockets
LED Lights
Color: Black Only

Frame Structure

Frame: 3x2x3/16
Toprail: 2" Square Tube 14GA
Crossmembers: 3x2x3/16
Tongue: 4" Channel
Uprights: 2x2x1/8
Square Cut Fender Braces Not Capped
No Board Brackets

Options

*Electric Brake 2nd Axle (3500#) (NA LDX)
Wrap Tongue
Set Back Jack
Spare Rack (Bolt on)
Spare ST205/75R/15 LRC on 5-Hole
Economy Production model. No Other Sizes or Options Available

Ramps/Tailgates:

4' Slide-n-Ramps
4' Lay-N TG (77") w/Coil Spring Assist
