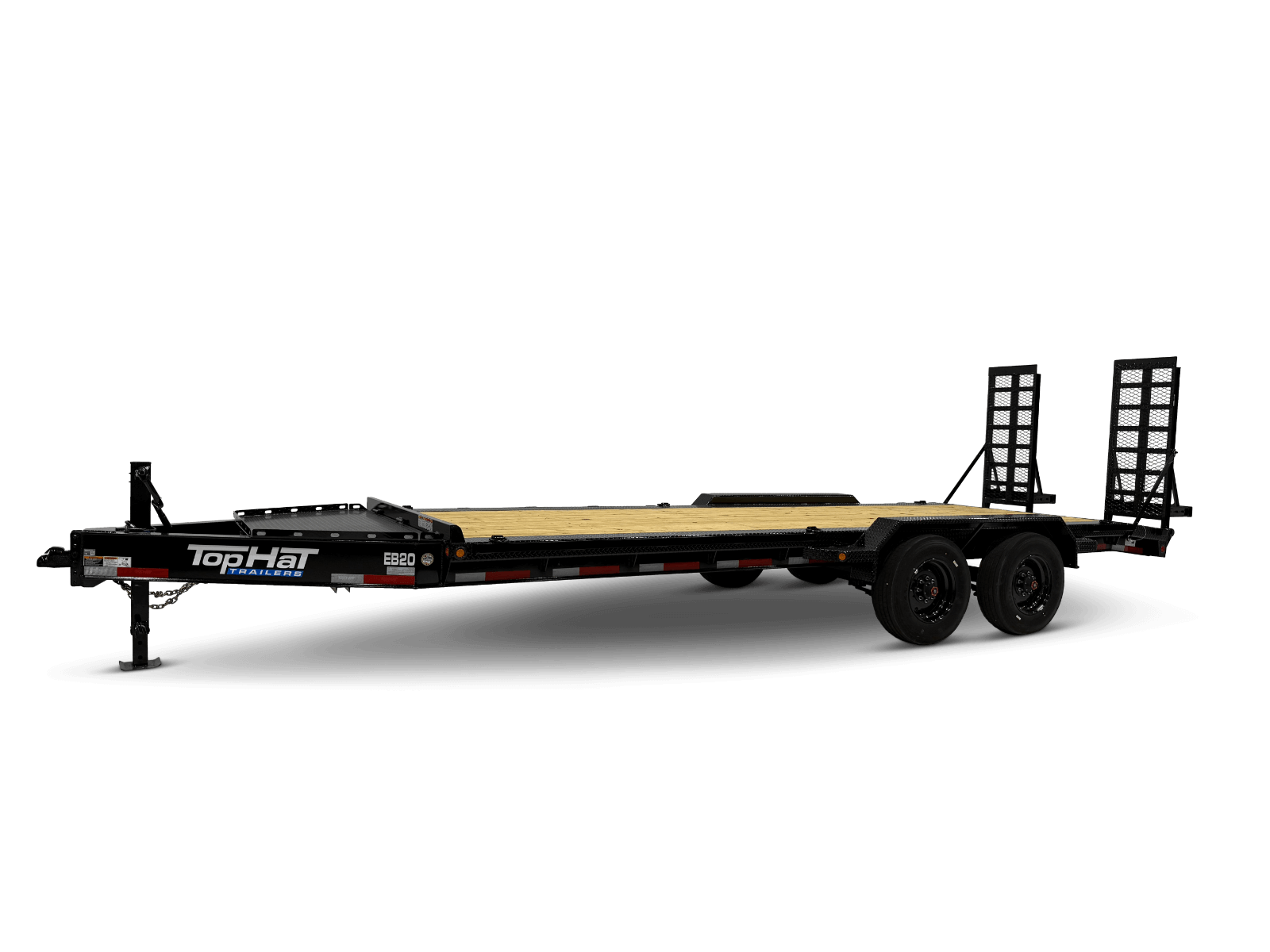

Beam Frame Equipment Hauler 20K

Trailers - Beam Frame Equipment Hauler
Print

Beam Frame Equipment Hauler 20K

Beam Frame Equipment Hauler

Request More Info

  • ST235/75R/17.5 LRJ Tires on Single Wheel
  • 2-10000# Dexter Oil Bath Axles w/Electric Brakes
  • 5 Leaf Slipper Spring Suspension
  • Adjustable 2 5/16" DEMCO Easy Latch Coupler (5 Position Channel)
  • 10000# Drop Leg Jack
  • HD 3/16" Diamond Plate Fenders (Double Broke)
  • Treated Pine Floor
  • Break Away Unit w/Charger
  • DOT Reflective Tape
  • Sealed Flush Mount LED Lights w/Wiring Harness
  • 5/8" D-Rings (6)
  • Color: Stock
  • Spare ST235/75R/17.5 LRJ Tires on Single Wheel
  • Extra Weld-on D-Rings 5/8" (Each)
  • Fork Rack (2-6" Channel tubes set at 46" Outside. Driver side)
  • Fork Rack Tubing & dimensions can be custom w/additional fee.
  • *5' Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks)
  • Rear Stabalizer Jack (5K Top Wind Pipe Mount)
  • 5' Fold-up Channel Ramp w/Adjustable Knees & Spring Assist
  • **4' Self Cleaning Cleated Dovetail & 4' Mini Jumbo Spring Assist Ramps (Must be 20' or longer)
  • 5' XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist
  • Above Ramp is 24" Wide Covered w/Expanded Metal
  • 3-4' Dovetail ILO 2' Dovetail
  • 2' Self Cleaning Cleated Dovetail ILO 2' Treadplate Dovetail
  • *Rear Slide-N Ramps on 16' will be 4 1/2'.
  • **Jumbo Ramps NA on lengths less than 20'
  • Frame: 10"x19# I-Beam
  • Tongue: Integrated w/Frame
  • Front Bumper w/Side Gussets
  • Crossmembers: 3" Channel 16" OC
  • Stake Pockets w/3/8x2 Rubrail
  • 2' Treadplate Dovetail
  • Flush Floor
  • Oversized Toolbx/Spare Holder in Tongue
  • Diamond Plate Fender Step/Braces
