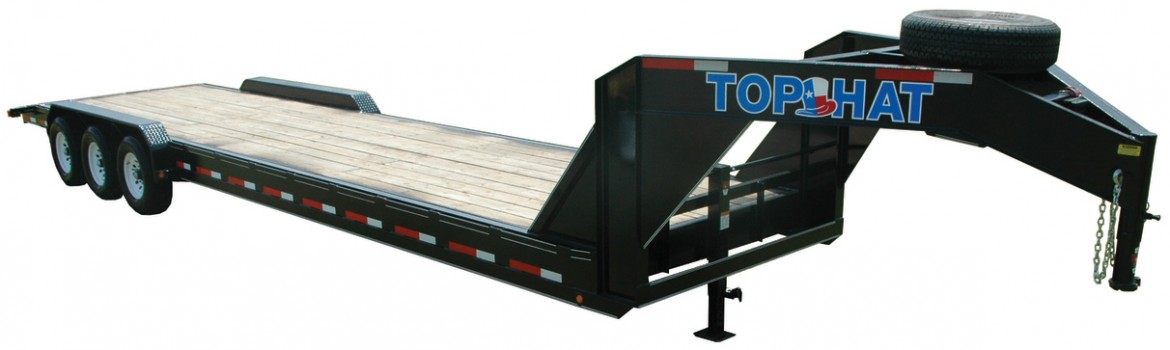

EQUIPMENT HAULER GOOSENECK 21K
Model
Axle Description
Tire Size
GAWR
GVWR
EQUIPMENT HAULER GOOSENECK 21K
26x83" EHGN 21K
3 - 7000#
Dexter
ST235/80R/16 LRE
7000#
21000#
28x83" EHGN 21K
3 - Electric Brakes
Nev-R-Adjust
30x83" EHGN 21K
E-Z Lube - 1/2 Cambered
32x83" EHGN 21K
34x83" EHGN 21K
36x83" EHGN 21K
Standard Equipment
Coupler: 2 5/16" Round Adjustable
Jack: 10000# Drop Leg
Fenders: HD Diamond Plate
Floor: 2" Treated Pine
Brake: Electric All Wheel
Break Away Unit w/ Charger
Suspension: Slipper Spring
DOT Reflective Tape
Sealed Flush Mount LED Lights
Spare Rack
Colors: Refer to Chart
Frame Structure
Frame: 10" Channel
Neck & Risers: 12" I-Beam
4" Channel Truss from Fender to Front
Crossmembers: 3" Channel 16" OC
1/4x2 Rubrail
(See Options)
Flush Floor w/Fender Ht. 7"
2' Treadplate Dovetail
Options
Delete Rubrail
(Per Linear Ft)
Spare ST235/80R/16 LRE on 8-Hole
Dual 10000# Drop Leg Jacks
Toolbox Between Risers
(Requires Dual Jacks)
Weld-On D-Rings 5/8"
(Priced Per D-Ring)
Slide-N-Ramps 4' Channel
Slide-N-Ramps 5' Channel
Slide-N-Ramps 6' Channel
4' Fold Up Channel Ramps
5' Fold Up Channel Ramps
6' Fold Up Channel Ramps
Spring Assist on Fold Up Ramps
Self Cleaning Dovetail w/Jumbo Ramps
Drive Over Fenders
Change Length of Treadplate Dovetail to 3' or 4'
3" Square Tube Toprail
(Side Option - Priced Per Ft)
Other Options Available
