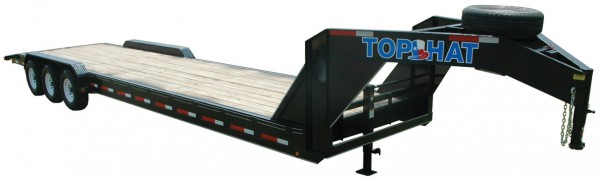

EQUIPMENT HAULER GOOSENECK 21K
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| EQUIPMENT HAULER GOOSENECK 21K | ||||
| 26x83" EHGN 21K | 3 - 7000# Dexter | ST235/80R/16 LRE | 7000# | 21000# |
| 28x83" EHGN 21K | 3 - Electric Brakes Nev-R-Adjust | |||
| 30x83" EHGN 21K | E-Z Lube - 1/2 Cambered | |||
| 32x83" EHGN 21K | ||||
| 34x83" EHGN 21K | ||||
| 36x83" EHGN 21K |
- Coupler: 2 5/16" Round Adjustable
- Jack: 10000# Drop Leg
- Fenders: HD Diamond Plate
- Floor: 2" Treated Pine
- Brake: Electric All Wheel
- Break Away Unit w/ Charger
- Suspension: Slipper Spring
- DOT Reflective Tape
- Sealed Flush Mount LED Lights
- Spare Rack
- Colors: Refer to Chart
- Frame: 10" Channel
- Neck & Risers: 12" I-Beam
- 4" Channel Truss from Fender to Front
- Crossmembers: 3" Channel 16" OC
- 1/4x2 Rubrail
- Flush Floor w/Fender Ht. 7"
- 2' Treadplate Dovetail
- Delete Rubrail
- Spare ST235/80R/16 LRE on 8-Hole
- Dual 10000# Drop Leg Jacks
- Toolbox Between Risers
- Weld-On D-Rings 5/8"
- Slide-N-Ramps 4' Channel
- Slide-N-Ramps 5' Channel
- Slide-N-Ramps 6' Channel
- 4' Fold Up Channel Ramps
- 5' Fold Up Channel Ramps
- 6' Fold Up Channel Ramps
- Spring Assist on Fold Up Ramps
- Self Cleaning Dovetail w/Jumbo Ramps
- Drive Over Fenders
- Change Length of Treadplate Dovetail to 3' or 4'
- 3" Square Tube Toprail
- Other Options Available
