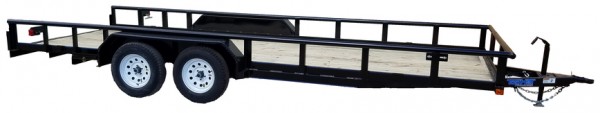

XL PIPE UTILITY
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| XL PIPE UTILITY | ||||
| 12x83" XLP | 2 - 3500# Dexter | ST205/15 LRC Radial | 3500# | 7000# |
| 14x83" XLP | 1 - Electric Brake Nev-R-Adjust | With "Delete Brake" Option | ||
| 16x83" XLP | EZ Lube - 1/2 Cambered | 2950# | 4490# | |
| 18x83" XLP | ||||
| 20x83" XLP |
- Coupler: 2" Forged A-Frame
- Jack: 2000# Set Back
- Fenders: HD Diamond Plate Straight
- Floor: 2" Treated Pine
- Brake: Electric 2 Wheel
- Break Away Unit w/Charger
- Stake Pockets
- Spare Rack
- LED Lights
- Colors: Refer to Chart
- Frame: 4x3x1/4
- Toprail: 2 3/8" Pipe
- Crossmembers: 3x2x3/16
- Tongue: 4" Channel Wrap
- Uprights: 3x2x3/16
- Square Back w/Board Bracket
- 77" Box
- Delete Brake Axle
- Electric Brake
- 3" Pipe Toprail
- Fold Up Jack
- 7000# Jack
- Spare ST205/15 LRC on 5-Hole Radial
- Upgrade to 225/15 Radial LRC
- Spare ST225/15 LRC on 5-Hole Radial
- Gooseneck w/8" Channel Neck
- 4' Slide-N-Ramps
- 5' Slide-N-Ramps
- 4 1/2' Ramps-N-Toprail
- Tailgate Options Available
- Sidegate Options Available
- Spring Assist
- Other Options Available
