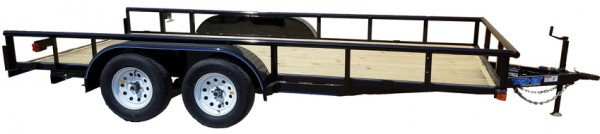

MEDIUM PIPE UTILITY
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| MEDIUM PIPE UTILITY | ||||
| 10x83" MP | 2 - 3500# Dexter | ST205/15 LRC Radial | 3500# | 7000# |
| 12x83" MP | 1 - Electric Brake Nev-R-Adjust | With "Delete Brake" Option | ||
| 14x83" MP | EZ Lube - 1/2 Cambered | 2950# | 4490# | |
| 16x83" MP | ||||
| 18x83" MP | ||||
| 20x83" MP |
- Coupler: 2" Forged A-Frame
- Jack: 2000#
- Fenders: 9x72 Rolled Straight
- Floor: 2" Treated Pine
- Brake: Electric 2 Wheel
- Break Away Unit w/Charger
- Stake Pockets
- LED Lights
- Colors: Refer to Chart
- Frame: 3x2x3/16
- Frame: 4x3x1/4 on 20'
- Toprail: 2 3/8" Pipe
- Crossmembers: 3x2x3/16
- Tongue: 4" Channel Wrap
- Uprights: 3x2x3/16
- Square Back w/Board Bracket
- 77" Box
- Delete Brake Axle
- Electric Brake
- Flush Mount LED Lights
- HD Diamond Plate Fender Straight
- Spare Rack
- Set Back Jack
- Fold Up Jack
- 7000# Jack
- Teardrop Fenders
- Spare ST205/15 LRC on 5-Hole Radial
- 4' Slide-N-Ramps
- 4 1/2' Ramps-N-Toprail
- Tailgate Options Available
- Sidegate Options Available
- Spring Assist
- Other Options Available
