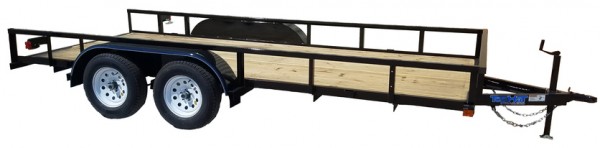

LITE DUTY UTILITY
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| LITE DUTY UTILITY | ||||
| 12x77" LDX (No Brakes) | 2 - 3500# Dexter | ST205/15 LRC Radial | 2950# | 4490# |
| 14x77" LDX (No Brakes) | *No Brakes | |||
| 16x77" LDX (No Brakes) | EZ Lube - 1/2 Cambered | |||
| 12x77" LDT (w/Brakes) | 2 - 3500# Dexter | ST205/15 LRC Radial | 3500# | 5000# |
| 14x77" LDT (w/Brakes) | 1 - Electric Brake Nev-R-Adjust | |||
| 16x77" LDT (w/Brakes) | EZ Lube - 1/2 Cambered |
- Coupler: 2" Forged A-Frame
- Jack: 2000#
- Fenders: 9x72 Rolled Straight
- Floor: 2" Treated Pine
- Break Away Unit w/Charger on LDT Model
- Stake Pockets
- Pin Stripe on Fender Only
- LED Lights
- Color: Black Only
- Frame: 3x2x3/16
- Toprail: 2" 14 ga. Square Tube
- Crossmembers: 3x2x3/16
- Tongue: 4" Channel
- Uprights: 2x2x1/8
- Square Cut Fender Braces Not Capped
- No Board Brackets
- Electric Brake on LDT
- Wrap Tongue
- Set Back Jack
- Teardrop Fenders
- Spare Rack
- Spare ST205/15 LRC on 5-Hole Radial
- 4' Slide-N-Ramps
- 48"x77" TG
- 2' DT w/24" TG 77" Box
- 2' DT w/36" TG 77" Box
- Spring Assist
- No Other Sizes or Options Available
- KNOW THE BRAKE LAWS IN STATES WHERE YOU ARE TOWING. SOME STATES REQUIRE BRAKES ON ALL TANDEM AXLE TRAILERS.
