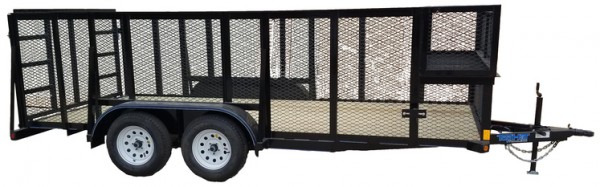

LANDSCAPE
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| LANDSCAPE | ||||
| 12x83" LS07 | 2 - 3500# Dexter | ST205/15 LRC Radial | 3500# | 7000# |
| 14x83" LS07 | 1 - Electric Brake Nev-R-Adjust | With "Delete Brake" Option | ||
| 16x83" LS07 | EZ Lube - 1/2 Cambered | 2950# | 4490# | |
| 18x83" LS07 | ||||
| 20x83" LS07 |
- Coupler: 2" Forged A-Frame
- Jack: 2000# Set Back
- Fenders: 9x72 Rolled Straight
- Floor: 2" Treated Pine
- Brake: Electric 2 Wheel
- Break Away Unit w/Charger
- Stake Pockets
- 48" Sides Enclosed w/Expanded Metal
- Lockable Expanded Metal Box 2x2x"Width of Trailer" at Front
- 48" Tall Upright Tailgate
- Spare Rack
- Flush Mount LED Lights
- Colors: Refer to Chart
- Frame: 3x2x3/16
- Toprail: 3x2x3/16
- Crossmembers: 3x2x3/16
- Tongue: 4" Channel Wrap
- Uprights: 3x2x3/16
- No Brakes
- Electric Brake
- 7000# Drop Leg Jack
- Teardrop Fenders
- Spare ST205/15 LRC on 5-Hole Radial
- HD Diamond Plate Fender Straight
- Spring Assist
- Weed Eater Rack
- Water Cooler Rack
- Shovel & Rake Rack
- HD 9990# GVWR
- Remove Landscape Storage Box
- Other Options Available
- No Higher Side Options Available
