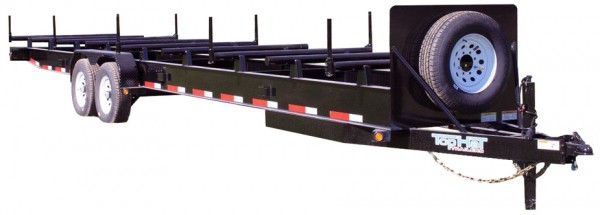

PIPE HAULER 14K and PIPE HAULER GOOSENECK 14K
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| PIPE HAULER 14K | ||||
| 24x84" PH14 | 2 - 7000# Dexter | ST235/16R LRE | 7000# | 14000# |
| 28x84" PH14 | 2 - Electric Brakes Nev-R-Adjust | |||
| 32x84" PH14 | E-Z Lube - 1/2 Cambered | |||
| 36x84" PH14 | ||||
| PIPE HAULER GOOSENECK 14K | ||||
| 24x84" PH14GN | 2 - 7000# Dexter | ST235/16R LRE | 7000# | 14000# |
| 28x84" PH14GN | 2 - Electric Brakes Nev-R-Adjust | |||
| 32x84" PH14GN | E-Z Lube - 1/2 Cambered | |||
| 36x84" PH14GN | ||||
| 40x84" PH14GN |
- Coupler: 2 5/16" Adjustable
- Jack: 10000# Drop Leg
- Fenders: HD Diamond Plate Straight
- DOT Reflective Tape
- Brake: Electric All Wheel
- Break Away Unit w/Charger
- 3 - Stationary Ratchet Winches w/Straps on 32'
- 4 - Stationary Ratchet Winches w/Straps on 36' & 40'
- Expanded Metal Tray At Front
- Expanded Metal Tray Over Axles
- Headache Rack/Bulkhead: Solid 1/4" Plate Steel
- Spare Rack on Bulkhead
- Winch Bar
- Colors: Black or Standard Red
- Frame: 12"x16# I-Beam
- Crossmembers: 5" Channel
- Tongue: 12"x16# I-Beam Integrated w/Frame
- Neck: 12"x16# I-Beam
- Material Supports: 3" Pipe x 6' Long
- Removable Pipe Stakes
- 10000# Drop Leg
- Dual 10000# Drop Leg Jacks
- Toolbox Between GN Risers
- 10" Channel Fenders
- Extra Ratchet Winches w/Straps
- 6" Channel Trough Down Center
- 8' Wide
- Spare ST235/80R/16 LRE on 8-Hole
- 17500 GVWR w/8K Oil Bath Axle
