Top Hat Trailers

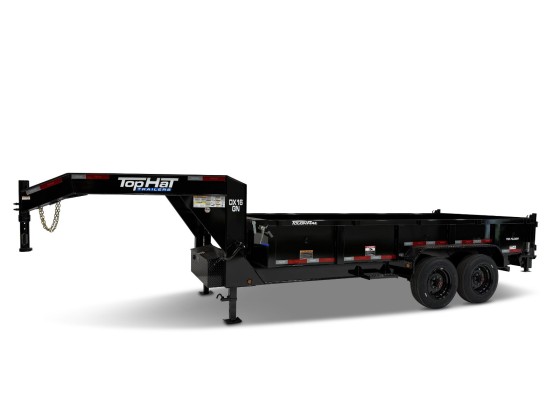

LOW PROFILE GOOSENECK DUMP 16K


  • DX Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
  • Ground Level Crank Kit For Spring Loaded Long Arm Retractable Tarp (3-4' Sides Only)
  • Motorized Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
  • Gas Engine Powered Pump in Lieu of Electric Pump
  • Spare ST215/75R/17.5 LRH on 8-Hole
  • Dual Hydraulic 12K Jack Replacing Dual 12K Jack
  • Hoist Upgrade w/10" Frame Upgrade
  • Telescopic Hoist ILO Scissor Hoist
  • Solar Battery Charger
  • Jumbo Step (40" Replaces 18" Side Step)
  • Frame: 8" I-Beam
  • Neck & Risers: 10" I-Beam
  • Sides: 24" Tall 10 GA Sheet Metal w/Toprail
  • Floor: 7 GA Sheet Metal
  • Toprail: Rigid 3x2x7 GA Rectangular Tubing
  • Uprights: Formed Channel
  • Dump Body Frame: 6" Channel
  • Crossmembers: 3" Channel 16" OC
  • ST215/75R/17.5 LRH Tires on 8-Hole
  • 8000# Dexter Oil Bath 1/2 Cambered Axles w/5/8" Lug Studs
  • Electric Brake on 2-Axles w/2 1/4" Brake Pads
  • 2 5/16" Round Adjustable Coupler
  • Dual 10000# Drop Leg Jacks
  • HD Diamond Plate Fender (Double Broke)
  • Width: 83" Inside Box
  • Break Away Unit w/Charger
  • DOT Reflective Tape
  • Primed & Painted Underside
  • Dual Action Swing Out Doors/1 Piece Spreader Gate
  • Slide-N Ramp 6' Channel
  • 5/8" D-Rings in Box (4)
  • Spare Rack
  • Sealed Flush Mount LED Lights
  • Side Step (Driver Side)
  • Wiring Harness
  • Lockable Battery/Pump Box
  • Crank Style Roll Tarp & Tie Downs
  • Rear Stabilizer Stands
  • Color: Black
  • 520 Scissor Hoist 0n 14'-16'
  • Power Up/Power Down/Gravity Down
  • Control: Pistol Grip w/10' Cord
  • Safety Prop
  • Caulked Seams on Dump Body
  • Deep Cycle 12V Marine Battery
  • 110 Volt-5 Amp Charger
  • 3' Tall Sheet Metal Sides
  • 4' Tall Sheet Metal Sides
