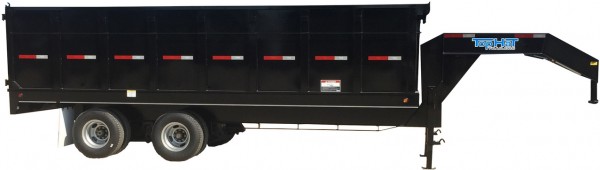

GOOSENECK DUMP 240
Model
Axle Description
Tire Size
GAWR
GVWR
GOOSENECK DUMP 240
8x16 GNDP 240
2 - 10000#
Dexter
ST235/80R/16 LRE
10000#
24000#
8x20 GNDP 240
2 - Electric Brakes
Nev-R-Adjust
Oil Bath - 8 Lug
Standard Equipment
Coupler: 2 5/16" Round Adjustable
Jack: Dual 10000# Drop Leg
Floor: 7 GA Sheet Metal
Width: 91.5" Inside Box
Brake: Electric All Wheel
Break Away Unit w/Charger
Oil Bath Axles
DOT Reflective Tape
Primed & Painted Underside
Dual Swing Out Doors
Ramp Pockets w/ 7' 6" Ramps
5/8" D-Rings in Box
Spare Rack
Sealed Flush Mount LED Lights
Wiring Harness
Lockable Battery/Pump Box
Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
Color:Black
Frame Structure
Frame: 12"x19# I-Beam
Neck: 12"x16# I-Beam
Sides: 48" Tall 12 GA Sheet Metal
Uprights: 24" OC
Dump Body Frame: 8" Channel
Crossmembers: 3" Channel 16" OC
Tarp Bracket & Tie Downs
Toprail: Rigid 3x2x7 GA Rectangular Tubing
Dump Components Listed Below -
Hoist: Scissor Lift
Power Up/Power Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Options
Dual 2-Speed Jacks
Dual Hydraulic Jacks
Deduct 7' 6" Ramps
9"x18" Grain Gate
8x16 Tarp
8x20 Tarp
Dump Tarp Installation
Spare ST235/80R/16 LRE on Dually
Gas Engine Powered Pump in Lieu of Electric Pump
Solar Battery Charger
