Trailers - Hydraulic Dump

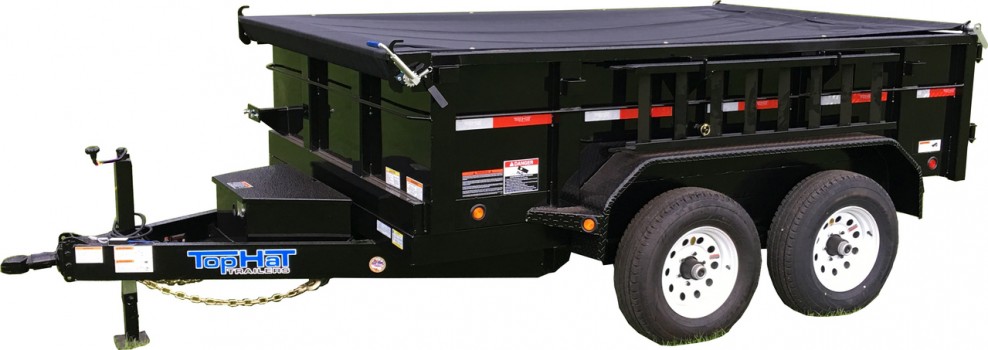

DUMP 100

Product Image 0

Product Image 1

Product Preview 0

Product Preview 1

Model

Axle Description

Tire Size

GAWR

GVWR

DUMP 100

6.5x10 DP 100

2 - 5200# Dexter

ST225/75R/15 LRD

5080#

9990#

6.5x12 DP 100

2 - Electric Brakes Nev-R-Adjust

E-Z Lube - 1/2 Cambered

Standard Equipment

Coupler: 2 5/16" Forged Adjustable 5/Position
Jack: 7000# Drop Leg
Fenders: HD Diamond Plate Straight
Floor: 12 GA Sheet Metal
Width: 77" Inside Box
Brake: Electric All Wheel
Break Away Unit w/Charger
Primed & Painted Underside
Dual Swing Out Doors
Spare Rack
Sealed Flush Mount LED Lights
Wiring Harness
Lockable Battery/Pump Box
Ramps Hangers on Side (Ramps Option)
5/8" D-Rings in Box (4)
Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
Crank Style Roll Tarp
Color: Black

Frame Structure

Frame: 5" Channel
Sides: 24" Tall 12 GA
Tongue: 5" Channel Wrap
Uprights: 24" OC
Dump Body Frame: 5x3x1/4 Angle
Crossmembers: 3" Channel 16" OC
Tarp Bracket & Tie Downs
Dump Components:
Hoist: Scissor Lift
Power Up/Power Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body

Options

DP 100 Options
Single Flip Up Door
Tailgate/Spreader Gate (Dual Hinge)
5' Ramps (Hangs on Side)
Spare ST225/15 Radial LRD on 6-Hole
235/80R/16 LRE Tire Upgrade (Per Tire)
Gas Engine Powered Pump in Lieu of Electric Pump
