Top Hat Trailers

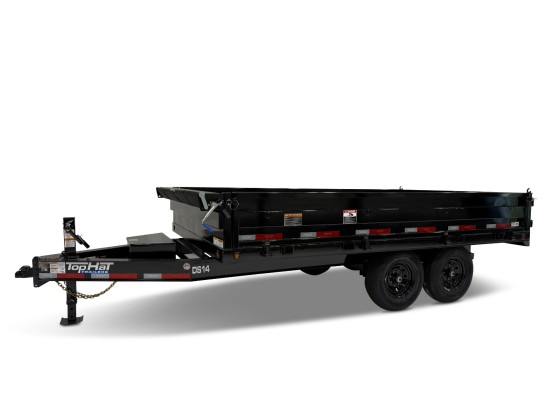

DROP SIDE DUMP 14K


  • ST235/80R/16 LRE Tires on 8-Hole
  • 2-7000# Dexter Axles w/Electric Brakes on 14K
  • 8000# Dexter Oil Bath Electric Brake on 16K
  • 2 5/16" DEMCO Easy Latch Adjustable 5/Position Coupler
  • 2 5/16" Round Adjustable Coupler on GN
  • 10000# Drop Leg Jack. Dual Jacks on GN
  • Width: 92" Inside Box
  • Break Away Unit w/Charger
  • DOT Reflective Tape
  • Primed & Painted Underside
  • Fold Down Sides (Allows Forklift Access)
  • Dual Swing Out Doors
  • Slide-N Ramp 6' Channel
  • 5/8" D-Rings in Box (4)
  • Spare Rack
  • Sealed Flush Mount LED Lights
  • Wiring Harness
  • Lockable Battery/Pump Box
  • Crank Style Roll Tarp & Tie Downs
  • Color: Black
  • Frame & Tongue: 8" I-Beam Intergrated
  • Neck & Risers: 10" I-Beam on GN
  • Sides: Fold Down 20" Tall 12 GA
  • Floor: 7 GA Sheet Metal
  • Dump Body Frame: 6" Channel
  • Crossmembers: 3" Channel 16" OC
  • Gas Engine Powered Pump in Lieu of Electric Pump
  • Spare ST235/80R/16 LRE on 8-Hole
  • Hydraulic 12K Jack Replacing Single 12K Jack (DSDP)
  • Dual Hydraulic 12K Jack Replacing Dual 12K Jack (DSGN)
  • Telescopic Hoist ILO Scissor Hoist
  • Solar Battery Charger
  • 17500 GVWR w/8K Oil Bath Axle-215/17.5 LRH Tire Code:DS16-DS16GN
  • Spare ST215/75R/17.5 LRH on 8-Hole
  • 520 Scissor Hoist 0n 14'-16'
  • Power Up/Power Down/Gravity Down
  • Control: Pistol Grip w/10' Cord
  • Safety Prop
  • Caulked Seams on Dump Body
  • Deep Cycle 12V Marine Battery
  • 110 Volt-5 Amp Charger
