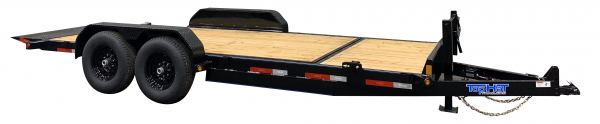

TILT DECK SHOCK 14K
Model
Axle Description
Tire Size
GAWR
GVWR
TILT DECK SHOCK 14K
20x83" TDS 14K
2 - 7000#
Dexter
ST235/80R/16 LRE
7000#
14000#
22x83" TDS 14K
2 - Electric Brakes
Nev-R-Adjust
24x83" TDS 14K
E-Z Lube - 1/2 Cambered
Standard Equipment
Coupler: 2 5/16" Forged Adjustable 5/Position
Jack: 10000# Drop Leg
Fenders: HD Diamond Plate w/Drop
Floor: 2" Treated Pine
Brake: Electric All Wheel
Break Away Unit w/Charger
Stake Pockets
Spare Rack
Flush Floor
Inverted Dovetail
Cushion Shock Absorber w/Control Valve
4" Drop Axle
Sealed Flush Mount LED Lights
Colors: Refer to Chart
Note:
20' Trailer Has 4' Stationary Deck w/16' Tilting Deck
Note:
22' Trailer Has 4' Stationary Deck w/18' Tilting Deck
Note:
24' Trailer Has 6' Stationary Deck w/18' Tilting Deck
Not Recommended For Heavy Loads On Rear Of Trailer.
Load Should Not Exceed 2' Behind Rear Axle.
Frame Structure
Frame: 6" Channel
Deck Frame: 6" Channel
Crossmembers: 3" Channel 16" OC
Tongue: 6" Channel
Options
Gooseneck w/10" I-Beam Neck & 4" Channel Truss
Weld-On D-Rings 5/8"
Spare ST235/80R/16 LRE on 8-Hole
Other Options Available
