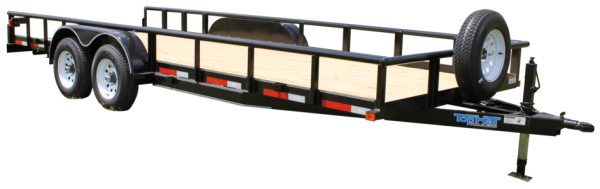

HEAVY PIPE 10K
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| HEAVY PIPE 10K | ||||
| 12x83" HP 10K | 2 - 5200# Dexter | ST225/75R/15 LRD | 5080# | 9990# |
| 14x83" HP 10K | 1 - Electric Brake Nev-R-Adjust | |||
| 16x83" HP 10K | E-Z Lube - 1/2 Cambered | |||
| 18x83" HP 10K | ||||
| 20x83" HP 10K | ||||
| 22x83" HP 10K | ||||
| 24x83" HP 10K |
- Coupler: 2 5/16" Forged A-Frame
- Jack: 7000# Drop Leg
- Fenders: HD Diamond Plate Straight
- Floor: 2" Treated Pine
- Brake: Electric 2 Wheel Thru 20'
- Brake: Electric 4 Wheel on 22-24'
- Break Away Unit w/Charger
- Suspension: Double Eye Spring
- Stake Pockets
- Square Back w/Board Bracket
- Spare Rack
- LED Lights
- Colors: Refer to Chart
- Frame: 5x3x1/4 Thru 20'
- Frame: 5" Channel 22-24'
- Toprail: 2 3/8" Pipe
- Crossmembers: 3" Channel
- Tongue: 5" Channel Wrap
- Uprights: 3x2x3/16
- Electric Brake
- Flush Mount LED Lights
- 10000# Drop Leg Jack
- Spare ST225/15 Radial LRD on 6-Hole
- 4' Slide-N-Ramps
- 5' Slide-N-Ramps
- 6' Slide-N-Ramps
- HD Split Tractor Tailgate
- HD Split Tailgate 48" Tall x 77-83" Box
- HD Split Tractor Rampgate 48" Tall x 77-83" Box
- *HD Tractor Gates have Spring Assist
- Gooseneck w/10" I-Beam Risers & Neck
- Other Options Available
