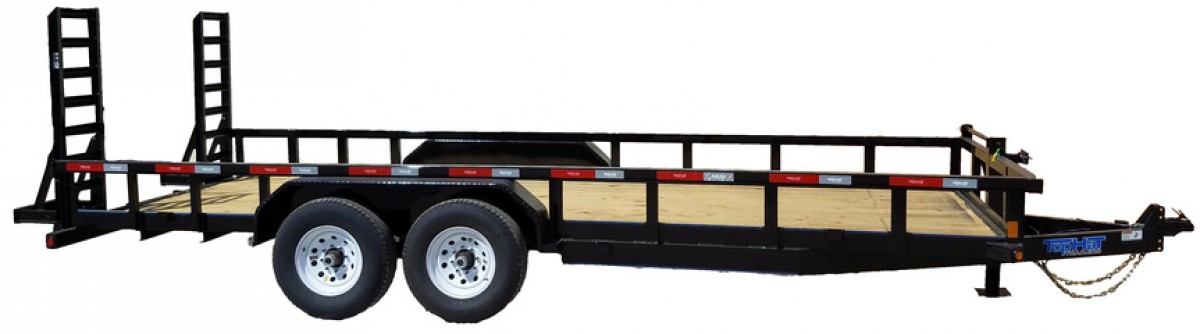

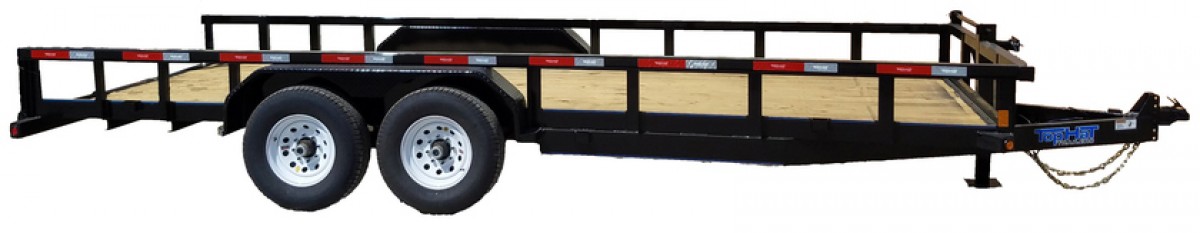

HEAVY HAULER 14K
Model
Axle Description
Tire Size
GAWR
GVWR
HEAVY HAULER 14K
12x83" HH 14K
2 - 7000#
Dexter
ST235/80R/16 LRE
7000#
14000#
14x83" HH 14K
2 - Electric Brakes
Nev-R-Adjust
16x83" HH 14K
E-Z Lube - 1/2 Cambered
18x83" HH 14K
20x83" HH 14K
22x83" HH 14K
24x83" HH 14K
Standard Equipment
Coupler: 2 5/16" Forged Adjustable 5/Position
Jack: 10000# Drop Leg
Fenders: HD Diamond Plate w/Drop
Floor: 2" Treated Pine
Brake: Electric All Wheel
Break Away Unit w/Charger
Suspension: Slipper Spring
Stake Pockets
DOT Reflective Tape
Square Back w/Board Bracket
Spare Rack
Flush Mount LED Lights
Colors: Refer to Chart
Frame Structure
Frame: 5x3x1/4 on 16'-20'
Frame: 6x4x5/16 on 22'-24'
Toprail: 3" Square Tube
Crossmembers: 3" Channel
Tongue: 6" Channel Wrap x 48"
Uprights: 3x2x3/16
Options
Spare ST235/80R/16 LRE on 8-Hole
Dovetail
4' Slide-N-Ramps
5' Slide-N-Ramps
(NA on 12' & 14')
6' Slide-N-Ramps
(NA on 12' & 14')
4' Fold Up Channel Ramps
5' Fold Up Channel Ramps
6' Fold Up Channel Ramps
Spring Assist on Fold Up Ramps
Monorail Option
Other Options Available
