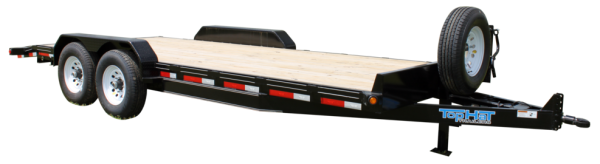

EQUIPMENT HAULER 14K
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| EQUIPMENT HAULER 14K | ||||
| 12x83" EH 14K | 2 - 7000# Dexter | ST235/80R/16 LRE | 7000# | 14000# |
| 14x83" EH 14K | 2 - Electric Brakes Nev-R-Adjust | |||
| 16x83" EH 14K | E-Z Lube - 1/2 Cambered | |||
| 18x83" EH 14K | ||||
| 20x83" EH 14K | ||||
| 22x83" EH 14K | ||||
| 24x83" EH 14K | ||||
| 26x83" EH 14K | ||||
| 28x83" EH 14K | ||||
| 30x83" EH 14K | ||||
| 32x83" EH 14K |
- Coupler: 2 5/16" Forged Adjustable 5/Position
- Jack: 10000# Drop Leg
- Fenders: HD Diamond Plate w/Drop
- Floor: 2" Treated Pine
- Brake: Electric All Wheel
- Break Away Unit w/Charger
- Suspension: Slipper Spring
- DOT Reflective Tape
- Sealed Flush Mount LED Lights
- Stake Pockets
- Spare Rack
- Colors: Refer to Chart
- Frame: 6" Channel on 16-24'
- Frame: 8" Channel on 26-32'
- Tongue: 6" Channel thru 24'
- Tongue: 8" Channel on 26-32'
- Front Bumper w/Side Gussets
- Crossmembers: 3" Channel 16" OC
- 2' Treadplate Dovetail
- 1/4x2 Rubrail
- Flush Floor w/Floor to Fender Ht. 11" on 6" & 9" on 8" Frame
- Spare ST235/80R/16 LRE on 8-Hole
- Weld-On D-Rings 5/8"
- 4' Slide-N-Ramps
- 5' Slide-N-Ramps
- 6' Slide-N-Ramps
- 4' Fold Up Channel Ramps
- 5' Fold Up Channel Ramps
- 6' Fold Up Channel Ramps
- Spring Assist on Fold Up Ramps
- Self Cleaning Dovetail w/Jumbo Ramps
- HD 3/16" Smooth Drive Over Fenders
- Change Length of Treadplate Dovetail to 3' or 4'
- 3" Square Tube Toprail
- Other Options Available
