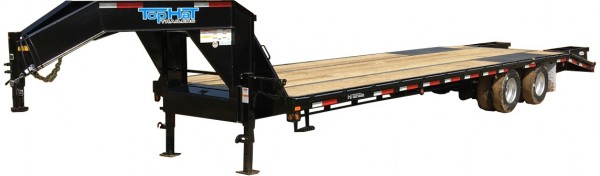

GOOSENECK 300 LO PROFILE SUPER DUTY
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| GOOSENECK 300 LO PROFILE SUPER DUTY | ||||
| 20x102" GN 300 | 2 - 15000# Dexter | 215/75R/17.5 LRH | 15000# | 30000# |
| 24x102" GN 300 | 2 - Electric Brakes Nev-R-Adjust | 10 - Hole | ||
| 28x102" GN 300 | Oil Bath - 10 Lug | |||
| 32x102" GN 300 | ||||
| 36x102" GN 300 | NOTICE: TRAILER IS SUBJECT TO FEDERAL EXCISE TAX. | |||
| 40x102" GN 300 | ||||
| 20+5x102" GN 300 | ||||
| 25+5x102" GN 300 | ||||
| 27+5x102" GN 300 | ||||
| 30+5x102" GN 300 | ||||
| 35+5x102" GN 300 | ||||
- Coupler: 2 5/16" Round Adjustable
- Jack: Dual 2-Speed
- Floor: 2" Treated Pine
- Brake: Electric All Wheel
- Break Away Unit w/Charger
- Spare Tire Rack Inside Neck
- Lockable Toolbox Between Risers
- Winch Plate Between Risers
- 1" D-Rings
- Wiring Harness w/Sealed LED Lights
- Driver & Curb Side Steps w/Grab Handles
- DOT Reflective Tape
- Dexter HD Adjustable Suspension
- Color: Black
- Frame: 12"x22# I-Beam
- Neck: 12"x19# I-Beam
- Crossmembers: 4" Channel 16" OC Thru Frame
- Side Rails: 8" Channel
- 3/8x2 Flat Rubrail
- Stake Pockets 24" OC
- Pipe Spools Between Each Stake Pocket
- Frame to Crossmember Gussets
- Anti Flex Torx Tube on 32' & Longer
- Low Profile
- Dozer Dovetail w/Fold Over Spring Assist Ramps on +5 Models
- Deck Height: 34.5"
- Spare 215/75R/17.5 LRH on Dually
- Jumbo Ramps
- 3rd Ramp on Dovetail
- 7 1/2' Slide-N-Ramps
- Dual Hydraulic Jack 12K Replacing Dual 12K 2-Speed Jack
- Deck Over Gooseneck
- Rolling Tailboard
- Extra 1" D-Rings
- Underbody Toolbox
- 2 - 15K Electric/Hydraulic Brakes w/Drum
- 2 - 15K HD Air Brakes w/ABS
- Air Ride Suspension
- Air Ride Compressor Kit
- Bridge Support Truss
- Other Options Available
