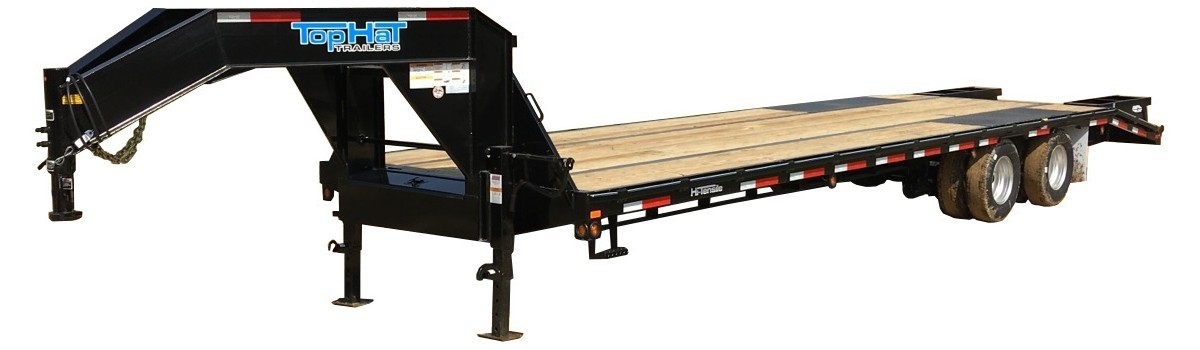

GOOSENECK 240 LO PROFILE
Model
Axle Description
Tire Size
GAWR
GVWR
GOOSENECK 240 LO PROFILE
20x102" GN 240
2 - 10000#
Dexter
ST235/80R/16 LRE
10000#
24000#
24x102" GN 240
2 - Electric Brakes
Nev-R-Adjust
28x102" GN 240
Oil Bath - 8 Lug
32x102" GN 240
36x102" GN 240
40x102" GN 240
20+5x102" GN 240
25+5x102" GN 240
27+5x102" GN 240
30+5x102" GN 240
35+5x102" GN 240
Standard Equipment
Coupler: 2 5/16" Round Adjustable
Jack: Dual 10000# Drop Leg
Floor: 2" Treated Pine
Brake: Electric All Wheel
Break Away Unit w/Charger

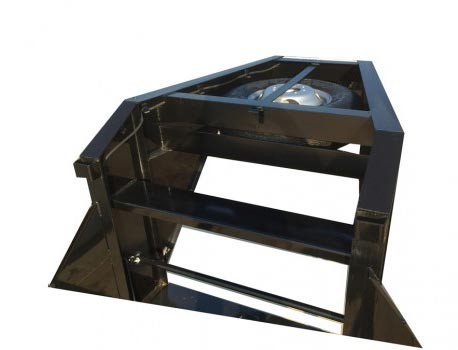

Spare Tire Rack Inside Neck
(Spare Tire Optional)
Lockable Toolbox Between Risers
Winch Plate Between Risers
Wiring Harness w/Sealed LED Lights
Driver & Curb Side Steps w/Grab Handles
DOT Reflective Tape
5 Leaf Slipper Spring Suspension
Color: Black
Frame Structure
Frame: 12"x16# I-Beam, 19# on 32' & Longer
Neck: 12"x16# I-Beam
Crossmembers: 3" Channel 16" OC Thru Frame
Side Rails: 6" Channel
3/8x2 Flat Rubrail
Stake Pockets 24" OC
Pipe Spools Between Each Stake Pocket
Frame to Crossmember Gussets
Anti Flex Torx Tube on 32' & Longer
Low Profile
(Crossmembers Thru Frame)
Dovetail w/Fold Over Spring Assist Ramps on +5 Models
Deck Height: 34.5"
Options
Spare ST235/80R/16 LRE on Dual
Upgrade to ST235/85R/16 LRG on Dual
Upgrade to 215/75R/17.5 LRH on Dual
Single Wheel w/235/75R/17.5 LRJ Tire
Jumbo Ramps
3rd Ramp on Dovetail

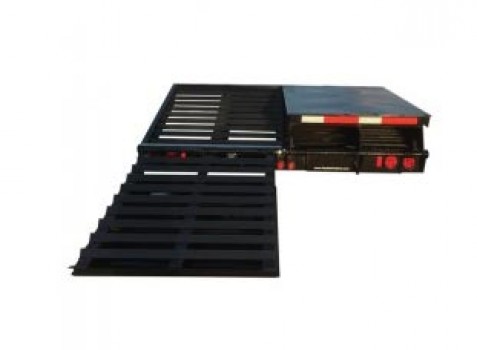

HD Dozer Dovetail
7 1/2' Slide-N-Ramps
(Straight Deck Only)
Dual 2-Speed Jacks
Dual Hydraulic Jack 12K Replacing Dual 12K Drop Leg Jack

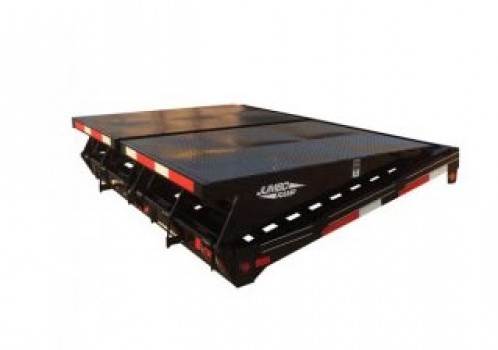

Deck Over Gooseneck
(8'x8')
1" D-Rings
(Priced Per Ring)
Underbody Toolbox
(Ask about size options.)
2 - 10K Electric/Hydraulic Brakes w/Drum
(Includes Elecdrolic 1600 PSI Pump Kit)

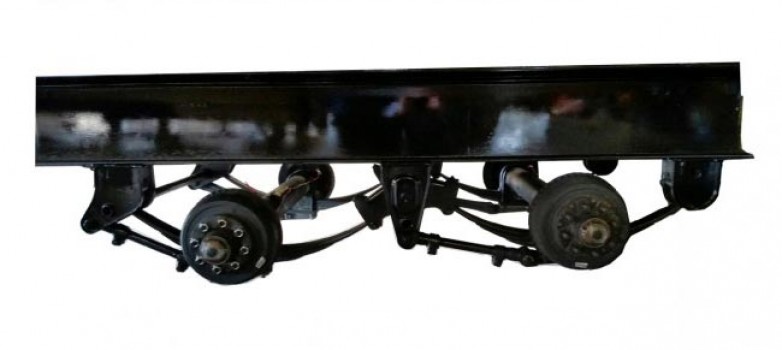

Dexter HD Adjustable Suspension
Replace Slipper Spring Suspension w/Torsion
Bridge Support Truss
Other Options Available
