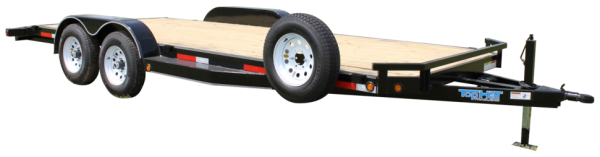

HD DELUXE CAR HAULER 10K
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| HD DELUXE CAR HAULER 10K | ||||
| 16x83" HD DCH 10K | 2-5200# Dexter | ST225/75R/15 LRD | 5080# | 9990# |
| 18x83" HD DCH 10K | 1-Electric Brake Nev-R-Adjust | |||
| 20x83" HD DCH 10K | E-Z Lube - 1/2 Cambered | |||
| 22x83" HD DCH 10K | ||||
| 24x83" HD DCH 10K |
- Coupler: 2 5/16" Forged A-Frame
- Jack: 7000# Drop Leg
- Fenders: 9x72 Rolled Teardrop
- Floor: 2" Treated Pine
- Brake: Electric 2 Wheel Thru 20'
- Brake: Electric 4 Wheel on 22-24'
- Break Away Unit w/Charger
- Stake Pockets
- Flush Floor
- 2' Treadplate Dovetail
- Rear Slide-N-Ramps
- Spare Rack
- Sealed Flush Mount LED Lights
- Wiring Harness
- Side Steps
- Colors: Refer to Chart
- Frame: 5" Channel Thru 20'
- Frame: 6" Channel on 22-24'
- Front Bump Rail: 2" Square Tube
- Crossmembers: 3x2x3/16
- Tongue: 5" Channel Wrap
- Floor to Fender Ht. 10"
- 2' Dovetail
- Second 5200# Electric Brake Axle
- 10000# Drop Leg Jack
- Spare ST225/15 Radial LRD on 6-Hole
- Change Length of Treadplate Dovetail to 3' or 4'
- Rounded Diamond Plate TD Fender
- HD Diamond Plate Straight
- Removable Fenders
- Large A-Frame Toolbox on Tongue
- Extended Tongue
- Rub Rail w/Stake Pockets
- Chrome Package
- Gooseneck w/10" I-Beam Neck & 4" Channel Truss
- Other Options Available
