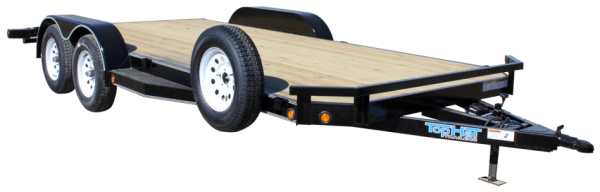

DELUXE CAR HAULER
Model
Axle Description
Tire Size
GAWR
GVWR
DELUXE CAR HAULER
16x83" DCH
2 - 3500#
Dexter
ST205/15 LRC
Radial
3500#
7000#
18x83" DCH
1 - Electric Brake
Nev-R-Adjust
20x83" DCH
EZ Lube - 1/2 Cambered
22x83" DCH
Standard Equipment
Coupler: 2" Forged A-Frame
Jack: 2000# Fold Up
Fenders: 9x72 Rolled Teardrop
Floor: 2" Treated Pine
Brake: Electric 2 Wheel
Break Away Unit w/Charger
Stake Pockets
Flush Floor
2' Treadplate Dovetail
Rear Slide-N-Ramps
Spare Rack
Sealed Flush Mount LED Lights
Wiring Harness
Side Steps
Colors: Refer to Chart
Frame Structure
Frame: 5" Channel Thru 20'
Frame: 6" Channel on 22'
Front Bump Rail: 2" Square Tube
Crossmembers: 3x2x3/16
Tongue: 5" Channel Wrap
Floor to Fender Ht. 10"
Options
Electric Brake
2 5/16" Atwood Coupler
2 5/16" RAM Coupler
Spare ST205/15 LRC on 5-Hole
Radial
Change Length of Treadplate Dovetail to 3' or 4'
Rounded Diamond Plate TD Fender
HD Diamond Plate Straight
Removable Fenders
Medium A-Frame Toolbox on Tongue
Chrome Package
Gooseneck w/8" Channel Neck & 4" Channel Truss
Other Options Available
