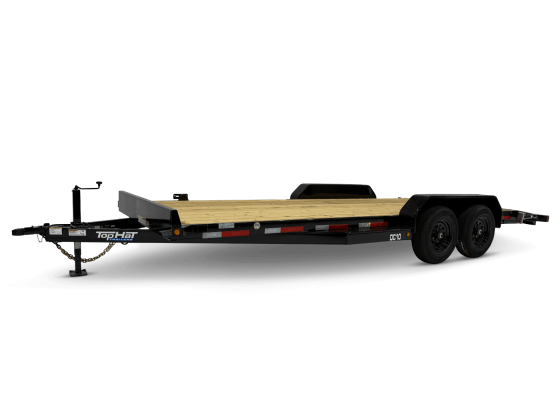

DELUXE CAR HAULER 10K

Model	Axle Description	Tire Size	GAWR	GVWR
HD DELUXE CAR HAULER 10K
16x83" DC10	2-5200# Dexter	ST225/75R/15 LRD	5080#	9990#
18x83" DC10	1-Electric Brake Nev-R-Adjust
20x83" DC10	E-Z Lube - 1/2 Cambered
22x83" DC10
24x83" DC10

Standard Equipment

• ST225/75R/15 LRE Tires on 6-Hole
• 2-5200# Dexter Axles w/Electric Brakes
• Axles 1/2 Cambered w/EZ Lube Hubs
• 2 5/16" Forged A-Frame Coupler
• 7000# Set Back Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Treated Pine Floor
• Break Away Unit w/Charger
• Spare Rack
• Stake Pockets
• Sealed Flush Mount LED Lights w/Wiring Harness
• Rear Slide-N-Ramps w/Stabalizer Jacks (Ramps are 4 1/2' on 16'. 5' on 18-24')
• Color: Stock

Frame Structure

• Frame: 5" Channel Thru 20'
• Frame: 6" Channel on 22-24'
• Tongue: 5" Channel Wrap
• Crossmembers: 3x2x3/16
• Formed Front Bumper w/Side Gussets
• 2' Treadplate Dovetail
• Side Steps (Diamond plate front fender steps)
• Flush Floor

Options

• 10000# Drop Leg Jack
• Spare ST225/75R/15 LRE on 6-Hole
• Rub Rail w/Stake Pockets
• 3-4' Dovetail ILO 2' Dovetail
• Rounded Diamond Plate TD Fender
• Rounded Smooth Teardrop Fenders
• Removable Fenders (Per Side)
• HD 3/16" Drive Over Fenders
• Large A-Frame Toolbox on 42" Tongue (Fold-up jack NA w/Toolbox. Jack becomes Set-Back @ NC)
• Extended Tongue
• 45 Degree Front Corners
• Winch Plate
• Gooseneck w/10" Neck & Risers
