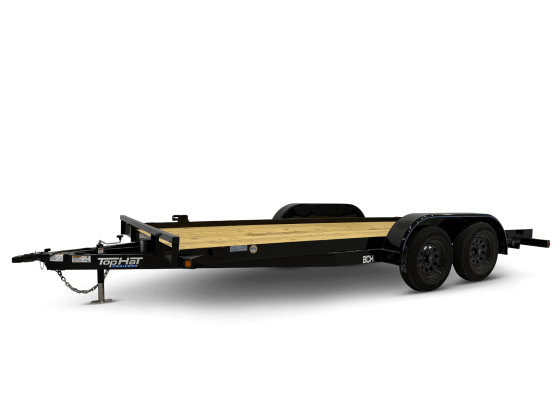

BASIC CAR HAULER

Model	Axle Description	Tire Size	GAWR	GVWR
CAR HAULER
12x83" BCH	2 - 3500# Dexter	ST205/15 LRC Radial	3500#	7000#
14x83" BCH	1 - Electric Brake Nev-R-Adjust
16x83" BCH	EZ Lube - 1/2 Cambered
18x83" BCH
20x83" BCH
With No Brakes Option			2950#	4490#

Standard Equipment

• ST205/75R/15R LRC Tires
• 2-3500# Dexter EZ-Lube 1/2 Cambered Axles (1w/Electric Brake)
• 2" Forged A-Frame Coupler
• 2000# Fold Up Jack
• 9x72 Rolled Fenders
• Treated Pine Floor
• Break Away Unit w/Charger
• Stake Pockets
• Spare Rack
• Flush Mount Sealed LED Lights in Rear Tailboard
• Color: Stock

Frame Structure

• Frame: 5x3x1/4
• Crossmembers: 3x2x3/16
• Tongue: 5" Channel Wrap
• Front Bump Rail

Options

• 7000# Drop Leg Jack
• Teardrop Fenders (Rolled-Smooth)
• Rounded Diamond Plate TD Fender
• 7000# Jack
• HD Diamond Plate Fender
• Removable Fenders (Per Side)
• Small A-Frame Toolbox on 3' Tongue (Fold-up & Set Back jack NA w/Toolbox. Jack put thru coupler @ NC)
• Spare ST205/75R/15 LRC on 5-Hole
• Upgrade to ST225/75R/15 LRE
• Spare ST225/75R/15 LRE on 5-Hole
• 2' Dovetail (Treadplate)
• Flush Floor (Floor to Fender Ht. 10")
• Slide-N Ramp 4' Angle
• Slide-N Ramp 5' Angle (NA 12'-14')
• *No Brakes (Know your State Law concerning brakes on trailers before ordering)
• *Electric Brake 2nd Axle (3500#)
• Rear Slide-N Ramps NA on CH
