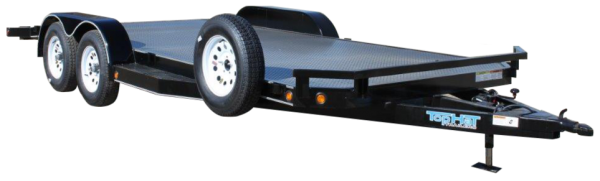

ALL STEEL CAR HAULER
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| ALL STEEL CAR HAULER | ||||
| 16x83" ASCH | 2 - 3500# Dexter | ST205/15 LRC Radial | 3500# | 7000# |
| 18x83" ASCH | 1 - Electric Brake Nev-R-Adjust | |||
| 20x83" ASCH | EZ Lube - 1/2 Cambered | |||
| 22x83" ASCH |
- Coupler: 2" Forged A-Frame
- Jack: 2000# Fold Up
- Fenders: 9x72 Rolled Teardrop
- Floor: Diamond Plate Steel
- Brake: Electric 2 Wheel
- Break Away Unit w/Charger
- Stake Pockets
- Flush Floor
- Dovetail
- Non Removable Rear Slide-N-Ramps
- Side Steps
- Spare Rack
- Sealed Flush Mount LED Lights
- Wiring Harness
- 4 D-Rings In Floor
- Colors: Refer to Chart
- Frame: 5" Channel Thru 20'
- Frame: 6" Channel on 22'
- Front Bump Rail: 2" Square Tube
- Crossmembers: 3x2x3/16
- Tongue: 5" Channel Wrap
- 45 Degree Front Corners
- Floor to Fender Ht. 10"
- Electric Brake
- 2 5/16" Atwood Coupler
- 2 5/16" RAM Coupler
- Spare ST205/15 LRC on 5-Hole Radial
- 7000# Jack
- Rounded Diamond Plate TD Fender
- HD Diamond Plate Straight
- Removable Fenders
- Split Dovetail
- Extra Flush Mount Tie Rings In Floor
- Large A-Frame Toolbox on Tongue
- Toolbox/Spare Holder In Floor
- Racer Toolbox On Front
- Steel Rock Shield
- Rear Tread Plate Steps
- Chrome Package
- Warn 8K Winch w/Winch Plate Built Into Floor
- Gooseneck w/8" Channel Neck & 4" Channel Truss
- Other Options Available
