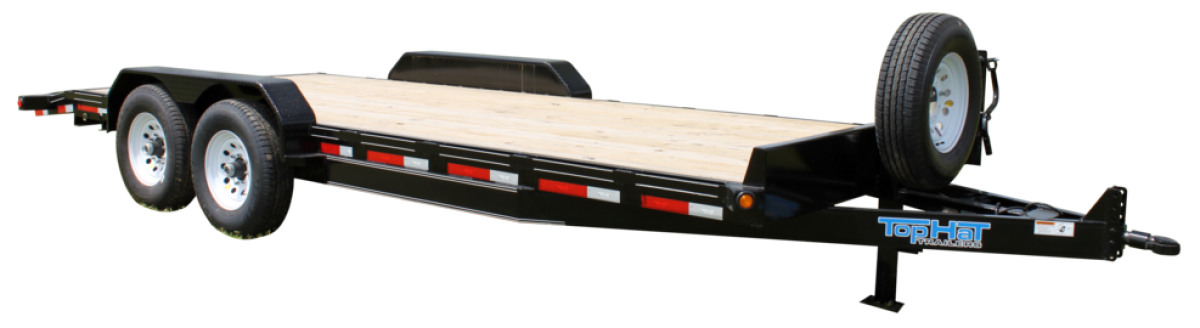

EQUIPMENT HAULER 14K
Model
Axle Description
Tire Size
GAWR
GVWR
EQUIPMENT HAULER 14K
12x83" EH 14K
2 - 7000#
Dexter
ST235/80R/16 LRE
7000#
14000#
14x83" EH 14K
2 - Electric Brakes
Nev-R-Adjust
16x83" EH 14K
E-Z Lube - 1/2 Cambered
18x83" EH 14K
20x83" EH 14K
22x83" EH 14K
24x83" EH 14K
26x83" EH 14K
28x83" EH 14K
30x83" EH 14K
32x83" EH 14K
Standard Equipment
Coupler: 2 5/16" Forged Adjustable 5/Position
Jack: 10000# Drop Leg
Fenders: HD Diamond Plate w/Drop
Floor: 2" Treated Pine
Brake: Electric All Wheel
Break Away Unit w/Charger
Suspension: Slipper Spring
DOT Reflective Tape
Sealed Flush Mount LED Lights
Stake Pockets
Spare Rack
Colors: Refer to Chart
Frame Structure
Frame: 6" Channel on 16-24'
Frame: 8" Channel on 26-32'
Tongue: 6" Channel thru 24'
Tongue: 8" Channel on 26-32'
Front Bumper w/Side Gussets
Crossmembers: 3" Channel 16" OC
2' Treadplate Dovetail
1/4x2 Rubrail
Flush Floor w/Floor to Fender Ht. 11" on 6" & 9" on 8" Frame
Options
Spare ST235/80R/16 LRE on 8-Hole
Weld-On D-Rings 5/8"
(Priced Per D-Ring)
4' Slide-N-Ramps
5' Slide-N-Ramps
(NA on 12' & 14')
6' Slide-N-Ramps
(NA on 12' & 14')
4' Fold Up Channel Ramps
5' Fold Up Channel Ramps
6' Fold Up Channel Ramps
Spring Assist on Fold Up Ramps
Self Cleaning Dovetail w/Jumbo Ramps
HD 3/16" Smooth Drive Over Fenders
(EH Style Only)
Change Length of Treadplate Dovetail to 3' or 4'
3" Square Tube Toprail
(Side Option - Priced Per Ft)
Other Options Available
